SACC-CI-M12FS-8CON-L180-10G

Weight

0.005 kg

Series SACC-CI-M

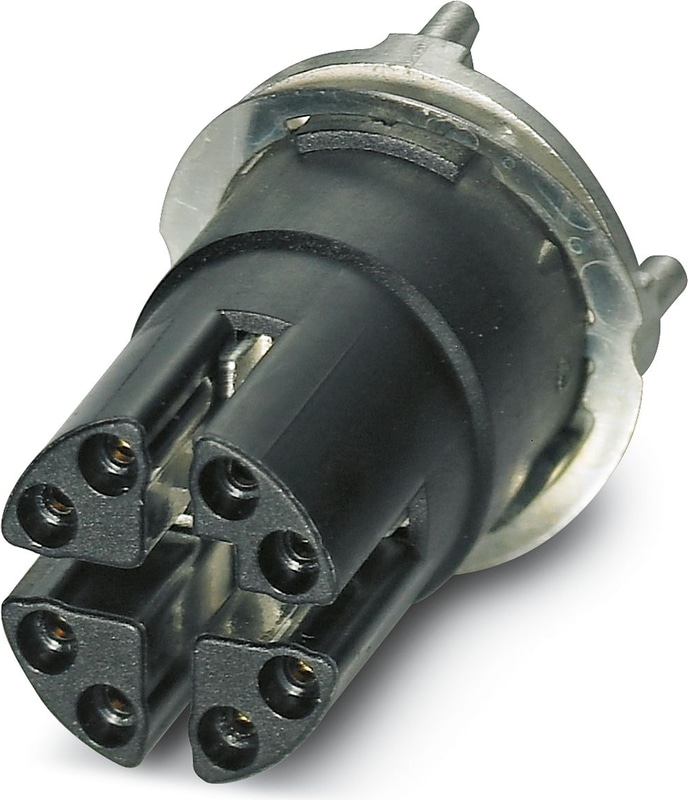

SACC-CI-M12FS-8CON-L180-10G - Contact carrier

Contact carrier, Ethernet CAT6A, 8-position, Socket, straight, M12, coding: X, PCB mounting, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238675

Reduced mounting costs thanks to two-piece device connector
Packaging available for automated pick and place assembly
All common pin assignments and codings available
Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate
Compatible with connectors with screw or push-in connection

Documents

Technical Document

Notes

Notes on operation

The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Product properties

Application	Data
Sensor Type	Ethernet
Number of Positions	8
Seal present	no
Shielded	yes
Coding	X
Thread type	M12

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	1.5 kV
Contact resistance	≤ 5 mΩ
Insulation resistance	> 100 MΩ
Nominal voltage U_N	50 V AC
Nominal voltage U_N	60 V DC
Nominal current I_N	0.5 A
Transmission characteristics (category)	CAT6A

Connection data

Connection Method

THR solder connection

Interfaces

Signal type/category

Ethernet CAT6A

Material specifications

Material	Zinc die-cast (nickel-plated)
Flammability rating according to UL 94	V0
Contact Material	Copper alloy
Contact surface material	Gold
Contact carrier material	PPA

Connection 1

Head design	Socket
Head cable outlet	straight
Head thread type	M12
Coding	X

Cable/line

Signal type/category

Ethernet CAT6A

Mechanical data

Insertion/withdrawal cycles

> 100

Ambient conditions

Degree of protection (when plugged in)	IP67 (correctly plugged in and locked)
Degree of Protection	IP67 (correctly plugged in and locked)
Degree of Protection	IP67, when plugged in
Ambient Temperature (Operation)	-40 °C ... 90 °C

M12

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-109

Mounting

Mounting Type

PCB mounting

Packaging specifications

Type of packaging

Blister

1552243
SACC-M12-SCO NUT, M12 SPEEDCON housing screw connection for M12 female inserts, with O-ring, for all SPEEDCON-capable THR and wave soldering contact carriers
1416144
Housing screw connection - SACC-DSIV-M12-NUT
1432460
Housing screw connection - SACC-M12-SCO NUT L 90
1414004
SACC-BP-F-M12/M15-6-THR - Housing screw connection, Socket, M12, Rear mounting, M15 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239056
1414020
Housing screw connection - SACC-BP-F-M12/M15-6-THR SCO
1437889
Housing screw connection - SACC-M12 NUT PRESS
1417989
Housing screw connection - SACC-DSIV-M12-NUT-9 THR
1027662
Housing screw connection - SACC-BP-F-M12-THR PP
1027678
Housing screw connection - SACC-FP-F-M12-THR PP
