1436628
Official DistributorSKU
PHX1436628
MPN
SACC-CI-M12FS-4CON-L90 SCO
Weight
0.005 kg
Series SACC-CI-M

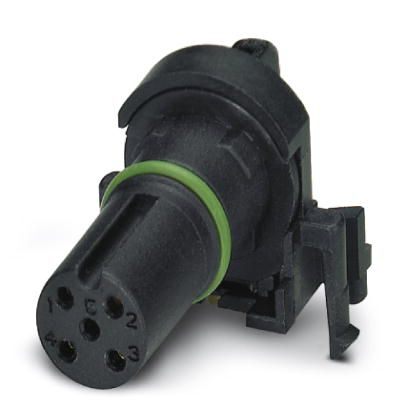

SACC-CI-M12FS-4CON-L90 SCO - Contact carrier
Contact carrier, 4-position, Socket, angled, M12-SPEEDCON, coding: A, PCB mounting, Wave soldering, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239625
- Reduced mounting costs thanks to two-piece device connector
- All common pin assignments and codings available
- Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate
- Additional gasket for the device when not plugged in
Technical Specifications
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Rated current at 40°C | 4 |
| Rated voltage | 250 |
| Rated surge voltage | 2.5 kV |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Mounting Type | PCB mounting |
Material
| Flammability rating according to UL 94 | V0 |
| Contact carrier material | PA 6.6 |
| Sealing material | FKM / EPDM |
Cable
| Standards/specifications | M12 connector IEC 61076-2-101 |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
| REACh SVHC | Lead 7439-92-1 |
Accessories
PROT-M12 SH - An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors
PROT-M12 FB - M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry
SACC-M12-SCO NUT, M12 SPEEDCON housing screw connection for M12 female inserts, with O-ring, for all SPEEDCON-capable THR and wave soldering contact carriers
SACC-BP-F-M12/M15-6-THR - Housing screw connection, Socket, M12, Rear mounting, M15 x 1, THR solder connection, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239056
Why Proax for Phoenix Contact 1436628?
Proax is an authorized distributor of Phoenix Contact 1436628 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
