1528280
Official DistributorSKU
PHX1528280
MPN
SACC-CI-M12FS-5CON-SCO
Weight
0.008 kg
Series SACC-CI-M

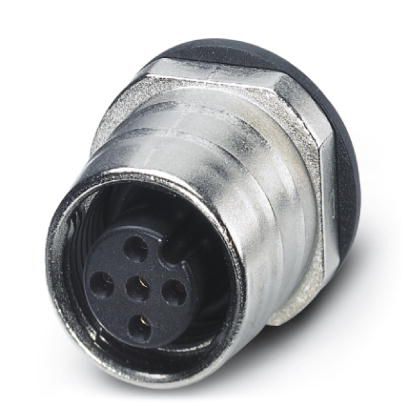

SACC-CI-M12FS-5CON-SCO - Device connector rear mounting
Device connector rear mounting, 5-position, Socket, straight, M12-SPEEDCON, coding: A, PCB mounting, THR solder connection, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
Technical Specifications
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 85 °C |
| Degree of Protection | IP67 |
General
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V |
| Number of Positions | 5 |
| Insulation resistance | ≥ |
| Coding | A - standard |
| Status display | No |
| Degree of pollution | 3 |
Material
| Flammability rating according to UL 94 | HB |
| Contact Material | CuZn |
| Contact surface material | Au |
| Sealing material | FKM |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Why Proax for Phoenix Contact 1528280?
Proax is an authorized distributor of Phoenix Contact 1528280 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
