NBC-M12MSD/ 2,0-93B/M12MSD CMC - Network cable

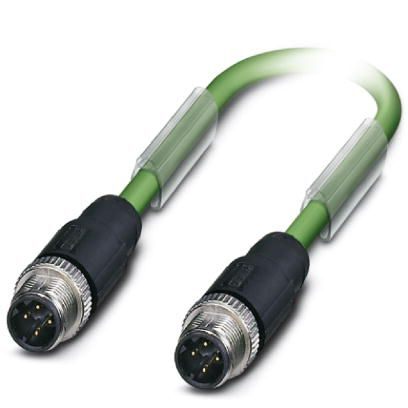

Network cable, PROFINET CAT5 (100 Mbps), EtherCAT® CAT5 (100 Mbps), 4-position, PVC/PVC, green RAL 6018, shielded (Aluminum-coated foil, tinned copper braided shield), Advanced Shielding Technology, Plug straight M12, coding: D / IP67, on Plug straight M12, coding: D / IP67, cable length: 2 m

Technical Specifications

Dimensions

Length of Cable2 m

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 90 °C (Plug / socket)
Ambient Temperature (Operation)-25 °C ... 90 °C (Plug / socket)
Degree of ProtectionIP65
Degree of ProtectionIP67

General

NoteThis product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 10.1 Cord Sets for Balanced Cabling
Rated current at 40°C4 A
Rated voltage48 V AC
Rated voltage60 V DC
Number of Positions4
Insulation resistance≥ 100 MΩ
CodingD - data
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Transmission characteristics (category)CAT5

Material

Flammability rating according to UL 94V0
Contact MaterialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Cable

Cable TypePROFINET PVC stranded CAT5
Cable type (abbreviation)93B
Cable abbreviation2YY(ST)CY
UL AWM style21694
Cable structure1x4xAWG22/7; SF/TQ
Conductor Cross Section4x 0.34 mm²
AWG Signal Line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.55 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight67 kg/km
External sheath, colorgreen RAL 6018
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Transmission Speed100 Mbps
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
Near end crosstalk attenuation (NEXT)76 dB (at 4 МHz)
Near end crosstalk attenuation (NEXT)70 dB (at 10 MHz)
Near end crosstalk attenuation (NEXT)65 dB (at 16 MHz)
Near end crosstalk attenuation (NEXT)63 dB (at 20 МHz)
Near end crosstalk attenuation (NEXT)60 dB (at 31.25 МHz)
Near end crosstalk attenuation (NEXT)55 dB (at 62.5 МHz)
Near end crosstalk attenuation (NEXT)50 dB (at 100 MHz)
Attenuation2.1 dB (with 1 MHz)
Attenuation4 dB (at 4 МHz)
Attenuation6.3 dB (at 10 MHz)
Attenuation8 dB (at 16 MHz)
Attenuation9 dB (at 20 МHz)
Attenuation11.4 dB (at 31.25 МHz)
Attenuation16.5 dB (at 62.5 МHz)
Attenuation21.3 dB (at 100 MHz)
Signal speed0.66 c
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Other resistanceUV resistant According to UL 1581, Section 1200
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to OilResistant to oil to a limited extent
Ambient Temperature (Operation)-40 °C ... 70 °C (cable, fixed installation)
Ambient Temperature (Operation)-40 °C ... 70 °C (Cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
