SACC-E-MINMS-5CON-PG13/0,5

Weight

0.075 kg

This product has been discontinued and replaced with 1417766

Series SACC-E-MINMS

SACC-E-MINMS-5CON-PG13/0,5 - Device connector front mounting

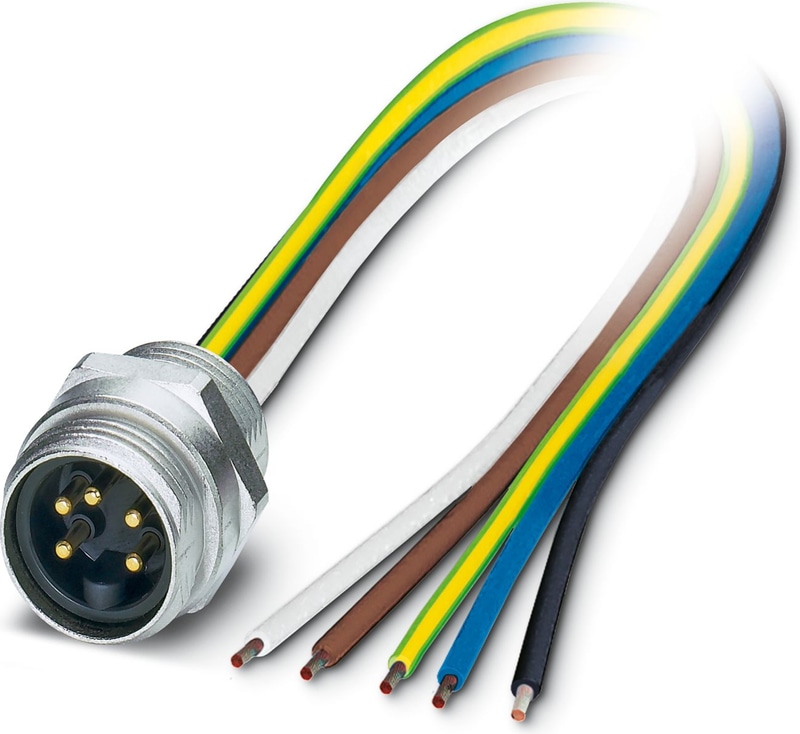

Sensor/actuator flush-type plug, 5-pos., 7/8", front mounting with Pg13.5 thread, with 0.5 m PVC litz wire, 5 x 0.75 mm2

Mounting

Mounting Type

Front mounting Pg13.5

Product properties

Number of Positions	5
No. of cable outlets	1
Shielded	no
Coding	A
Thread type	7/8"

Insulation characteristics

Overvoltage category	II
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	HB
Seal material	Viton
Contact Material	CuZn
Contact surface material	Au
Contact carrier material	PUR
Material for screw connection	Zinc die-cast, nickel-plated

Electrical properties

Contact resistance	≤ 5 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	250 V
Nominal current I_N	9 A

Conductor connection

Connection Method	Individual wires
Contact connection type	Socket
Conductor Cross Section	0.75 mm²

Connection 1

Head design	Pin
Head cable outlet	straight
Head thread type	7/8"-16UNF

Connection 2

Head design

free cable end

Cable/line

Cable Length	0.5 m
Cable Type	PVC litz wire
Wire diameter incl. insulation	2.7 mm
Single wire, color	brown, white, blue, black, green-yellow
Cable cross section	0.75 mm²
Conductor structure signal line	24x 0.20 mm
AWG Signal Line	18
Material wire insulation	PE
Thickness, insulation	0.85 mm (Core insulation)

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP67
Ambient Temperature (Operation)	-40 °C ... 85 °C (Plug)
Ambient Temperature (Operation)	-40 °C ... 85 °C (cable, fixed installation)
