1521449
Official DistributorSKU
PHX1521449
MPN
SACC-E-MINFS-5CON-PG13/0,5
Weight
0.072 kg
Series SACC-E-MINFS

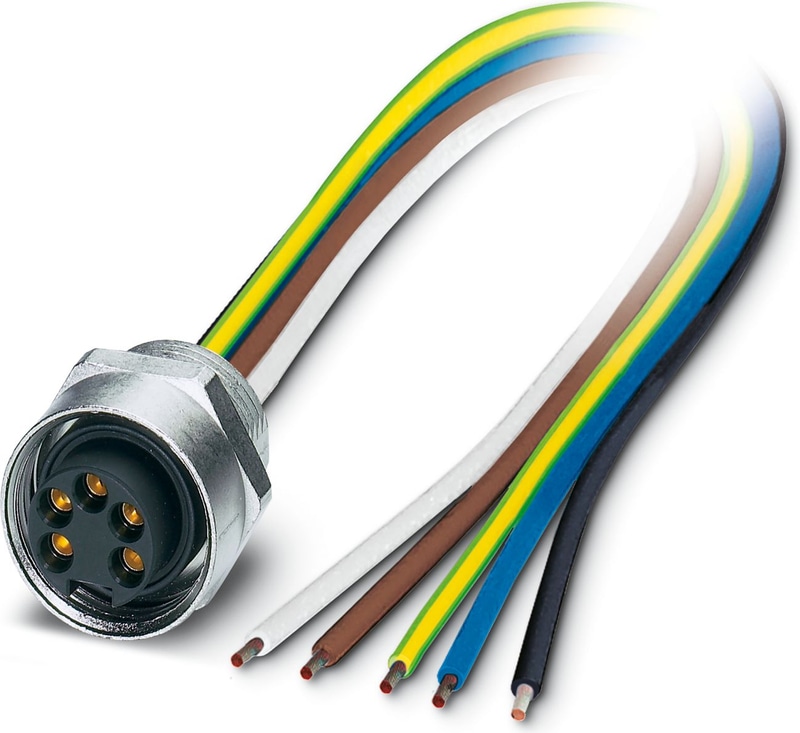

SACC-E-MINFS-5CON-PG13/0,5 - Flush-type connector
Sensor/actuator flush-type socket, 5-pos., 7/8", front mounting with Pg13.5 thread, with 0.5 m PVC litz wire, 5 x 0.75 mm2
Technical Specifications
Mounting
| Mounting Type | Front mounting Pg13.5 |
Product properties
| Sensor Type | Universal |
| Number of Positions | 5 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | Viton |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR |
| Material for screw connection | Zinc die-cast, nickel-plated |
Electrical properties
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 250 V |
| Nominal current IN | 9 A |
Conductor connection
| Connection Method | Individual wires |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | 7/8"-16UNF |
Connection 2
| Head design | free cable end |
Cable/line
| Cable Length | 0.5 m |
| Cable Type | PVC litz wire |
| Signal type/category | Universal |
| Wire diameter incl. insulation | 2.7 mm |
| Single wire, color | brown, white, blue, black, green-yellow |
| Cable cross section | 0.75 mm² |
| Conductor structure signal line | 24x 0.20 mm |
| AWG Signal Line | 18 |
| Material wire insulation | PE |
| Thickness, insulation | 0.85 mm (Core insulation) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (cable, fixed installation) |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Socket) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (cable, fixed installation) |
