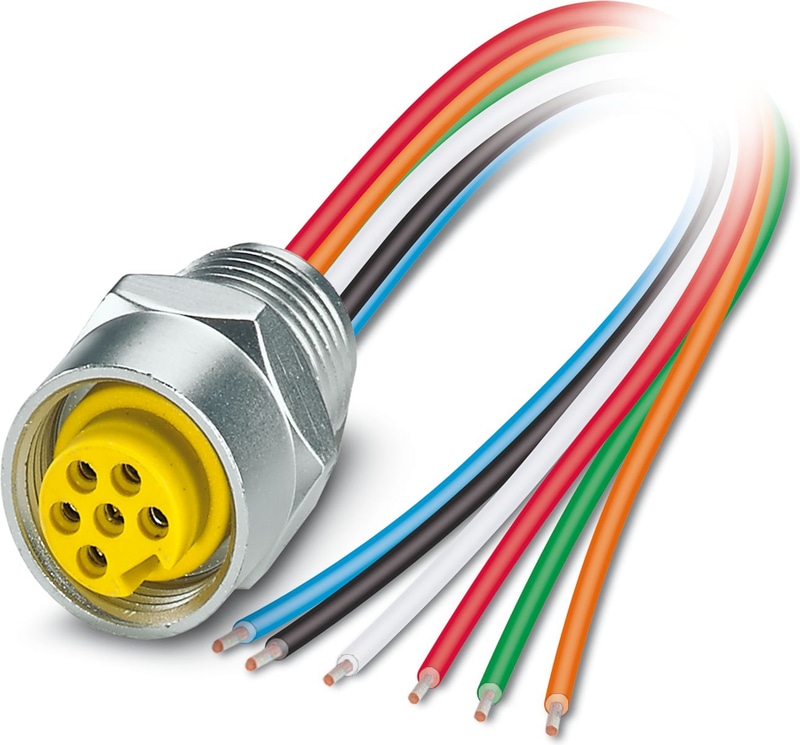

SACC-E-MINF-6CON-NPT12-U20/1,0 - Flush-type connector
Flush-type connector, 6-position, Socket, straight, 7/8"-16UNF, on free cable end, Front mounting, with 1/2 inch-14 NPT mounting thread, Individual wires, cable length: 1 m, 1.50 mm2, PVC litz wire
Technical Specifications
Trade restriction
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Mounting
| Mounting Type | Front mounting, with 1/2 inch-14 NPT mounting thread |
Product properties
| Number of Positions | 6 |
| No. of cable outlets | 1 |
| Shielded | no |
Insulation characteristics
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | V-0 |
| Housing surface material | Al anodized |
| Contact Material | Copper alloy |
| Contact surface material | Au |
| Contact carrier material | PVC |
| Material for screw connection | Anodized aluminum |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 600 V AC |
| Nominal voltage UN | 600 V DC |
| Nominal current IN | 8 A |
Conductor connection
| Connection Method | Individual wires |
| Contact connection type | Socket |
| Conductor Cross Section | 1.5 mm² |
| Tightening torque | 10 lbf-in. |
| Tightening torque | 1.12 Nm |
Mechanical data
| Insertion/withdrawal cycles | > 500 |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | 7/8"-16UNF |
Connection 2
| Head design | free cable end |
Cable/line
| Cable Length | 1 m |
| Cable Type | PVC litz wire |
| Wire diameter incl. insulation | 2.6 mm |
| Single wire, color | white 1, red 2, green 3, orange 4, black 5, blue 6 |
| Cable cross section | 1.5 mm² |
| Conductor structure signal line | 26 x AWG 30 |
| AWG Signal Line | 16 |
| Material wire insulation | PVC |
| Thickness, insulation | Core insulation |
Ambient conditions
| Degree of Protection | IP68 |
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Plug) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (cable, fixed installation) |
Standards and Regulations
| Standard designation | 7/8" connector |
| Standards/specifications | UL 2238 |
| Note | Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |
