VS-M12FSBPS-IP20-93B/0,5
Weight
0.072 kg
This product is Not Cancellable/Not Returnable
Series VS-M

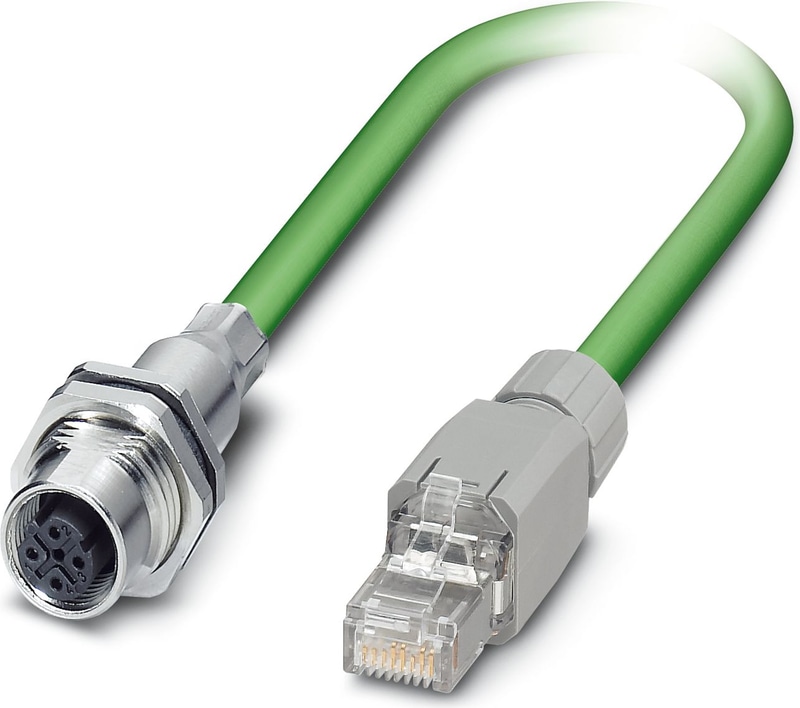

VS-M12FSBPS-IP20-93B/0,5 - Network cable
Network cable, degree of protection: IP20, cable length: 0.5 m, number of positions: 4, CAT5, material: CuZn/PA, PROFINET
Technical Specifications
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 10.1 Cord Sets for Balanced Cabling |
Mounting
| Mounting Type | Screw mounting |
Product properties
| Type | M12 |
| Sensor Type | PROFINET |
| Number of Positions | 4 |
| Shielded | yes |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 1 |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Seal material, flat gasket | FKM / FPM |
| Housing Material | CuZn/PA |
| Outer sheath, material | PVC |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Rated voltage (III/2) | 50 V |
| Rated voltage (III/3) | 50 V |
| Nominal voltage UN | 48 V |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Transmission Speed | 100 Mbps |
| Wave impedance | 100 Ω |
| Max. conductor resistance | 120 Ω/km |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Connection 1
| Type | Flush-type female connector straight M12 |
| Degree of Protection | IP67 |
Connection 2
| Type | Plug straight RJ45 |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 0.50 m |
PROFINET PVC stranded CAT5 [93B]
| Shielded | yes |
| UL AWM style | 21694 |
| Cable weight | 67 kg/km |
| Cable Type | PROFINET PVC stranded CAT5 |
| Short symbol | 2YY(ST)CY |
| Cable type (abbreviation) | 93B |
| Signal type/category | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Signal type/category | EtherCAT® CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 1x4xAWG22/7, SF/TQ |
| External Cable Diameter | 6.50 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | green RAL 6018 |
| Thickness, outer sheath | approx. 0.90 mm |
| Material, inner sheath | PVC |
| Conductor material | Tin-plated Cu litz wires |
| Conductor structure signal line | 7x 0.25 mm |
| AWG Signal Line | 22 |
| Conductor Cross Section | 4x 0.34 mm² |
| Material wire insulation | PE |
| Wire diameter incl. insulation | 1.55 mm |
| Single wire, color | white, yellow, blue, orange |
| Overall twist | Star quad |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| Nominal voltage, cable | 600 V |
| Test voltage Core/Core | 2000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 2000.00 V (50 Hz, 1 min.) |
| Cable insulation resistance | ≥ 500 MΩ*km |
| Coupling resistance | ≤ 20.00 mΩ/m (at 10 MHz) |
| Wave impedance | 100 Ω ±15 Ω (at 100 MHz) |
| Loop resistance | ≤ 120.00 Ω/km |
| Signal runtime | 5.3 ns/m |
| Signal speed | 0.66 c |
| Minimum bending radius, fixed installation | 3 x D |
| Minimum bending radius, flexible installation | 7 x D |
| Near end crosstalk attenuation (NEXT) | 80 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 76 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 70 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 65 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 63 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 60 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 55 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 50 dB (at 100 MHz) |
| Resistance to Oil | Resistant to oil to a limited extent |
| Flame resistance | according to UL 1685 (CSA FT 4) |
| Other resistance | UV resistant (According to UL 1581, Section 1200) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 50 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | Plug / socket |
Standards and Regulations
| Flame resistance | according to UL 1685 (CSA FT 4) |
