Official DistributorSKU
MPN
VS-M12FSBPS-IP20-93E-LI/0,5
Weight
0.053 kg
This product is Not Cancellable/Not Returnable
Series VS-M

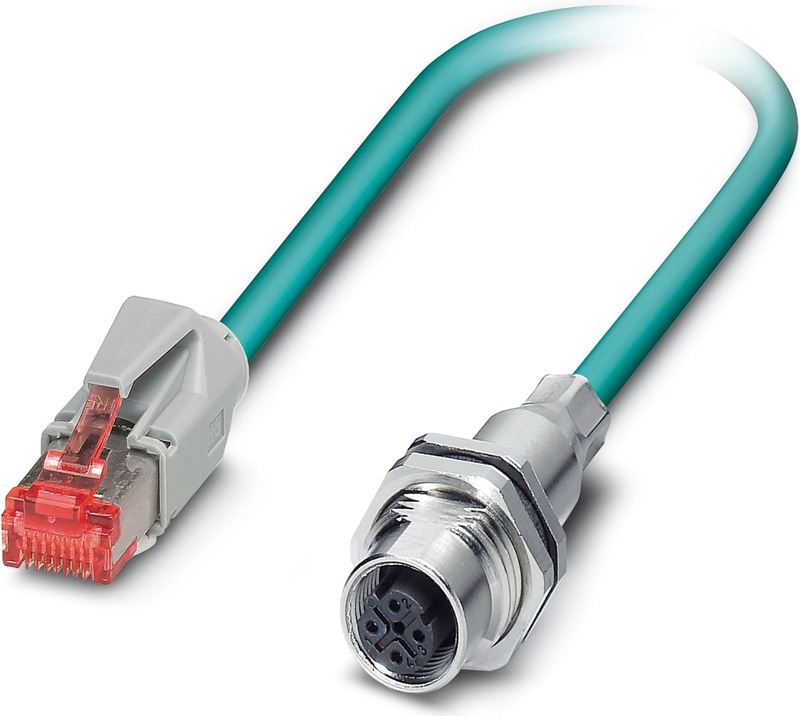

VS-M12FSBPS-IP20-93E-LI/0,5 - Network cable
Network cable, cable length: 0.5 m, number of positions: 4, CAT5, cable outlet: straight, Ethernet
Technical Specifications
Mounting
| Mounting Type | Screw mounting |
Product properties
| Type | M12 |
| Sensor Type | Ethernet |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Cable outlet | straight |
Material specifications
| Flammability rating according to UL 94 | V2 |
| Seal material, flat gasket | FKM |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
Electrical properties
| Nominal current IN | 2 A |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Transmission Speed | 100 Mbps |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Connection 1
| Type | Flush-type female connector straight M12 |
| Locking Type | SPEEDCON |
| Degree of Protection | IP65/IP67 |
Connection 2
| Type | Plug straight RJ45 |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 0.50 m |
Ethernet [93E]
| Shielded | yes |
| Cable weight | 42 kg/km |
| Cable Type | Ethernet |
| Cable type (abbreviation) | 93E |
| Signal type/category | Ethernet CAT5 (IEC 11801:2002) |
| Cable structure | 2x2xAWG26/7 PIMF |
| External Cable Diameter | 6.70 mm |
| Outer sheath, material | PUR |
| External sheath, color | water blue RAL 5021 |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 7x 0.15 mm |
| AWG Signal Line | 26 |
| Conductor Cross Section | 2x 2x 0.14 mm² |
| Material wire insulation | Cell PE |
| Wire diameter incl. insulation | ≤ 1.05 mm |
| Single wire, color | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Tinned copper braided shield |
| Nominal voltage, cable | max. 125 V |
| Test voltage, cable | 1000 V |
| Cable resistance | ≤ 150 Ω/km |
| Cable insulation resistance | ≥ 5 GΩ*km |
| Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
| Wave impedance | 100 Ω ±5 % (at 100 MHz) |
| Working capacitance | 42 pF |
| Signal speed | 0.72 c |
| Tensile strength | 30 N (for installation) |
| Tensile strength | 10 N (in accordance with installation) |
| Smallest bending radius, movable installation | 34 mm |
| Shield attenuation | 60.00 dB (up to 1000 MHz) |
| Halogen-free | complying with IEC 60754-1/2 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Concentration of fumes | in accordance with IEC 61034-1/2 |
| Flame resistance | complying with IEC 60332-2-2 |
| Other resistance | Microbe resistance as per VDE 0282 section 10 |
| Other resistance | Hydrolysis resistance as per DIN 53504 |
| Special Properties | Free of substances which would hinder coating with paint or varnish |
| Ambient Temperature (Operation) | -10 °C ... 50 °C (Cable, flexible installation) |
| Ambient Temperature (Operation) | -40 °C ... 70 °C (cable, fixed installation) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
Why Proax for Phoenix Contact 1404205?
Proax is an authorized distributor of Phoenix Contact 1404205 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
