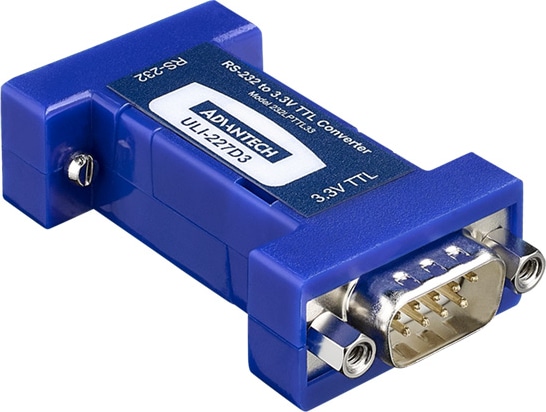

4-channel conversion between 3.3 Vdc TTL/CMOS and RS232. TD, RD, RTS, CTS support. Powered by pin/signals 7(RTS), 4 (DTR), 3(TD); lines can be high or low, but must be present to power the converter. Pin 5 is SG for both connectors. Use with microcontrollers or PLCs supporting TTL.
Features
- Converts 2 channels in each direction from RS-232 to 3.3 V TTL/CMOS
- Data rate: up to 115.2 kbps baud
- Powered from RS-232 data/handshake lines (high or low) - no power supply needed
- RS-232 DB9 female connector; TTL/CMOS DB9 male connector
Documents
Technical Specifications
Accessory General
| Mounting | Inline |
Environment
| Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
General
| Technology | Serial |
Power
| Power Input (Serial) | Port-Powered from RS-232 |
Serial Communication
| TTL & Current Loop Converter | RS-232 to TTL 3.3 Vdc |
| Serial Port Connector Type | 1 x DB9 Female, 1 x DB9 Male |
| Serial Port Number | 1 |
| Maximum Serial Transmission Speed | 115.2 Kbps |
Why Proax for Advantech BB-232LPTTL33?
Proax is the authorized distributor of Advantech BB-232LPTTL33. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BB232LPTTL33 |
| Pack Size | 1 |
