SKU

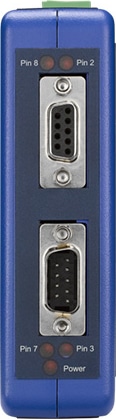

BB-232OPDRI premium industrial RS-232 repeater with 2kV optical isolation on both data ports protects equipment and data from ground loops and surges, plus isolation on power supply circuits for a third degree of protection. Data connected via DB9F/DCE and DB9M/DTE. TB power. 10-48 Vdc power input.
Features
- Extend and isolate RS-232 data another 15.2 m
- 2kV 3-way optical isolation
- Data rates up to 115.2 kbps
- -40 to +80 °C wide operating temperature
- DB9 M / DB9 F, IP30, DIN rail mount
- 10-48 Vdc power input (power supply required, not included, sold separately)
Documents
Technical Specifications
Accessory General
| Mounting | DIN |
Certification
| Safety | UL C1/D2 (Class I, Division 2) |
Environment
| Temperature (Operating Range) | -40 ~ 80°C (-40 ~ 176°F) |
General
| Technology | Serial |
| Mounting | DIN |
| Power | 10-48VDC |
| Temperature | -40 to 80C |
| Isolation | 2kV |
| Power and Data Isolated | Yes |
| Serial Type | RS-232 |
Mechanism
| Enclosure (Metal) | Metal |
Power
| Power Input (DC) | 10 ~ 48 VDC |
Protection
| ESD protection | 8 kV (Air) |
| Isolation | 2,000 VDC |
Serial Communication
| Serial Standard | RS-232 |
| Maximum Serial Transmission Speed | 115.2 Kbps |
| Serial Port Connector Type | DB9 |
| Serial Port Number | 1 |
| Repeater Maximum Distance | 15 Meters |
