Name: 1200293
Brand: Phoenix Contact
SKU: PHX1200293
Price: 0.1060 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

AI-S 1 - 8 TQ

Weight

0 kg

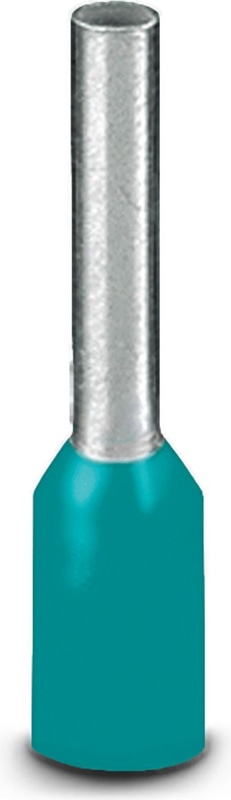

AI-S 1 - 8 TQ - Ferrule

Ferrule, S-Slimline, sleeve length: 8 mm, color: turquoise

Plastic collar with optimized diameter for 1.0 mm² cables, with max. insulation outside diameter of 2.8 mm
Suitable for all PT 1,5/S terminal blocks and COMBI connectors with a width of 3.5 mm
The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
The insulation reliability of close connections is increased and the splicing of wires is prevented

Conductor connection

Conductor cross section flexible max.	1 mm²
Conductor cross section AWG max.	18
Stripping length	11 mm

Dimensions

Sleeve length	8 mm
Maximum stripping length	11 mm
Ferrule diameter	1.5 mm
Sleeve wall thickness	0.15 mm
Insulating collar thickness	0.25 mm
Inner dimensions of the insulating collar	2.8 mm

Material specifications

Color	turquoise
Material	CU-DHP
Flammability rating according to UL 94	HB
Coating	tin-plated (galvanic)
Components	free from silicone and halogen

Technical data

Sleeve length

8 mm

Ambient conditions

Permanent temperature	105 °C (-40 °C no load / 0 °C dynamic load)
Short-term temperature	120 °C
