9635310
Official DistributorBy Rittal
SKU
RIT9635310
Weight
0.428 kg
Series Component Adapters 3-pole

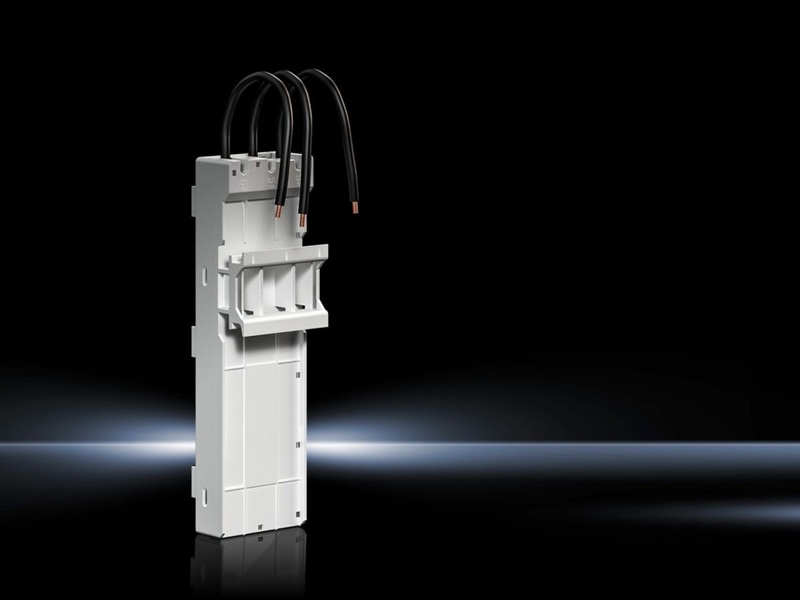

SV Component adaptor (Basic), 16 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 14 (L: 120 mm), WH: 45x160 mm
Component Adapters 3-pole
For assembly of switchgear and protective devices. Versions with integral fuse holder, fixed support rail (basic) or adjustable support rail (comfort).
Technical Specifications
Dimensions
| Width | 45 mm |
| Height | 160 mm |
| Depth | 34.5 mm |
| Version | Basic |
| Function principle | For mechanical attachment and direct contacting of electrical equipment on the board |
| Material | Polyamide Fire behavior corresponding to UL 94 |
| Color | RAL 7035 |
| Note | The technical data may vary for UL applications. |
| Rated current max. | 16 A |
| Rated operating voltage | 600 V (DC), 3~ |
| Number of Poles | 3-pole |
| Electrical UL ratings | Rated operating voltage (max.) UL: 600 V AC |
| Connection cables (AWG) | AWG 14 |
| Length of connection cable | 120 mm |
| Support rails Qty/height | 1 / 10 mm |
| Support rail type | Fixed |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.428 kg |
| Copper weight (kg per piece) | 0.024 |
| Customs tariff number | 85369095 |
| EAN | 4028177817371 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
