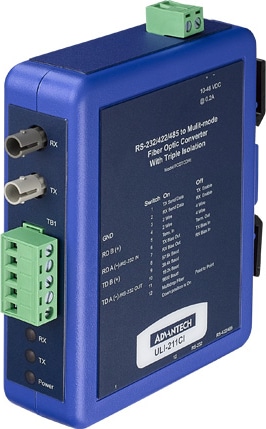

BB-FOSTCDRI
Official DistributorBy Advantech
SKU
ADVBBFOSTCDRI
A premium industrial serial to multi-mode fiber optic converter. Extends data communications up to 4 km. It provides three-way optical isolation on the input, output and power lines and multi-drop mode. In RS-232 mode supports Transmit and Receive data. A 10-30 VDC external power source is required.
Features
- Converts serial data signals to multi-mode ST fiber optic
- 2 KV 3-way optical isolation (input/output/power); EMI/RFI protection
- Data rate: up to 115.2 kbps
- Wide operating temperature: -40 to +80 °C
- DIN mount, IP20 plastic case
- 10–48 VDC power source required (not included, sold separately)
- UL Class 1 / Division 2
Documents
Technical Specifications
Accessory General
| Mounting | DIN |
Certification
| Safety | UL C1/D2 (Class I, Division 2) |
Environment
| Temperature (Operating Range) | -40 ~ 80°C (-40 ~ 176°F) |
Fiber General
| Optical Mode | Multi-mode |
| Max. Distance | 4 km |
| Optical Connector | ST |
| Optical Wavelength | 820 nm |
| Optical Port Number | 1 |
General
| Technology | Serial |
| Mounting | DIN |
| Power | 10-48VDC |
| Temperature | -40 to 80C |
| Serial Type | RS-232/422/485 |
| Serial Connector | Terminal Block |
| Fiber type | Multi-mode |
Power
| Power Input (DC) | 10 ~ 48 VDC |
Protection
| Isolation | 2,000 VDC |
| Surge protection | 600W |
Serial Communication
| Serial Standard | RS-232 / RS-422 / RS-485 |
| Serial Port Connector Type | Terminal block |
| Serial Port Number | 1 |
| Maximum Serial Transmission Speed | 115.2 Kbps |
Why Proax for Advantech BB-FOSTCDRI?
Proax is the authorized distributor of Advantech BB-FOSTCDRI. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BBFOSTCDRI |
| Pack Size | 1 |
