Official DistributorBy Advantech
SKU

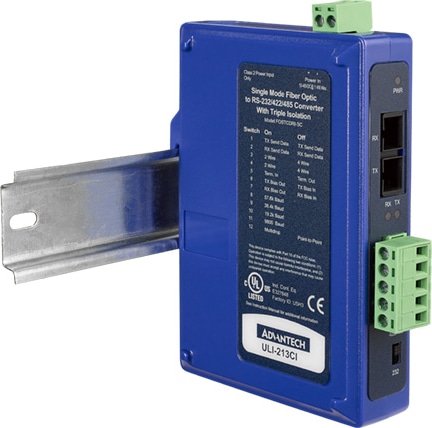

Designed with functionality required for heavier industrial environments. This industrial-grade isolated converter changes RS-232, RS-422, or RS-485 to single-mode fiber optics. Extends serial data ranges up to 9 miles. Multi-drop mode capable. In RS-232 mode, supports Transmit and Receive Data.
Features
- Converts serial data signals to single-mode fiber optic
- 2 KV 3-way optical isolation (two data ports, power circuit) and EMI/RFI protection
- Data rates up to 115.2 kbps
- Wide operating temperature: -40 to +80 °C
- IP30 plastic case, DIN mount
- UL 508 rated
- 10 – 48 VDC input power range
- Up to 15 km (9 mi) range
- Power supply not included, sold separately
Documents
Technical Specifications
Accessory General
| Mounting | DIN |
Environment
| Temperature (Operating Range) | -40 ~ 80°C (-40 ~ 176°F) |
Fiber General
| Optical Mode | Single-mode |
| Max. Distance | 15 km |
| Optical Connector | SC |
| Optical Wavelength | 1310 nm |
| Optical Port Number | 1 |
General
| Technology | Serial |
| Mounting | DIN |
| Power | 10-48VDC |
| Temperature | -40 to 80C |
| Serial Type | RS-232/422/485 |
| Serial Connector | Terminal Block |
| Fiber type | Single-mode |
Power
| Power Input (DC) | 10 ~ 48 VDC |
Protection
| Isolation | 2,000 VDC |
| Surge protection | 600W |
Serial Communication
| Serial Standard | RS-232 / RS-422 / RS-485 |
| Serial Port Connector Type | Terminal block |
| Serial Port Number | 1 |
| Maximum Serial Transmission Speed | 115.2 Kbps |
Why Proax for Advantech BB-FOSTCDRI-SC?
Proax is the authorized distributor of Advantech BB-FOSTCDRI-SC. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BBFOSTCDRISC |
| Pack Size | 1 |
