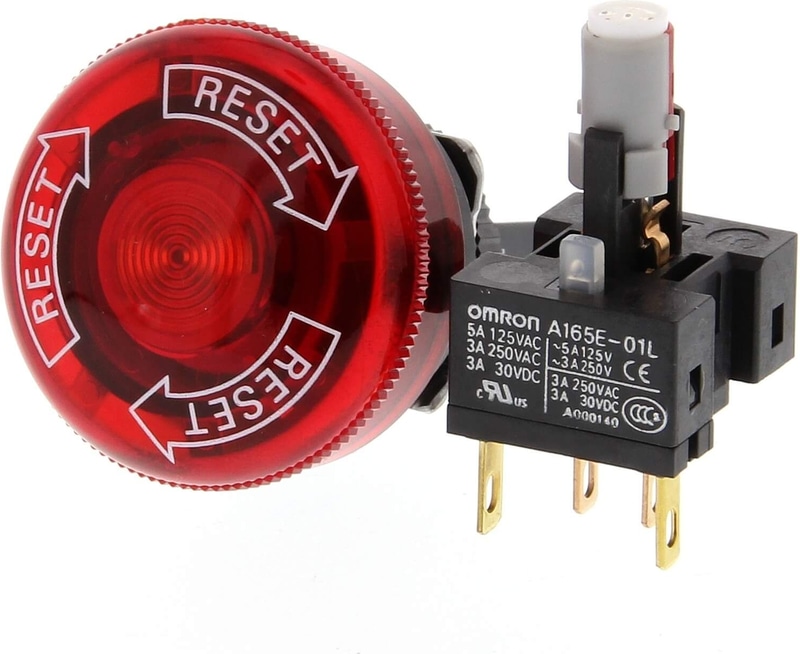

Emergency stop switch, illuminated, 30mm dia, push-lock/turn-reset, SPST-NC, 24 VDC
Documents
A165E E-Stop Emergency Stop Switch
Emergency Stop Switch with a mounting aperture of 16 mm and turn-reset
An emergency stop has to be identifiable, clearly visible, and able to stop a machine without creating additional hazards. The A165 series e-stop makes it effortless to achieve compliance. With its modular design, the A165 is easy to wire during installation and common maintenance tasks are simple. Its rugged IP65 construction has options for illuminated and non-illuminate buttons in both 30 mm and 40 mm models that it easier to add the A165 to the most common machine application and assure visibility and safety for operators.
- Separate construction with one of the smallest class of depths in the world
- Direct opening mechanism to open contacts in emergencies.
- Conforms to EN418.
- Includes a safety lock to prevent misuse.
Overview
- Direct opening mechanism to open contacts in emergencies, such as when they are welded.
- Features separate construction that allows the switch to be separated for easier wiring and one-piece-like construction that allows easier handling.
- Models available with 3 contacts built into a single block (see A165E-U)
Technical Specifications
| Type | Emergency Stop Switch |
| Illumination | Lighted |
| Contact Configuration | Single Pole Single Throw (SPST)-Normally Closed (NC) |
| Spare Parts | A16-24DSR |
| Shape | Head |
| Light Source | Light Emitting Diode (LED) |
| Action Type | Push-Lock, Turn-Reset |
| Bezel Color | Black |
| IP Rating | IP65 |
| Electrical Operating Frequency [Max] | 10 OPM |
| Head Diameter | 30 mm |
| DC Voltage | 24 V |
| Diameter | 16 mm |
| Electric Shock Protection Class | Class II |
| PTI (Tracking Characteristic) | 175 |
| Degree of Contamination | 3 (EN60947-5-1) |
| Approximate Weight (in Case of 2 Normally Closed (NC) (2) Switches) | 16 g |
| Mechanical Operating Frequency [Max] | 20 OPM |
| Insulation Resistance at 500 VDC | 100 MΩ |
| AC Dielectric Strength (Between Terminals of Same Polarity and Between Lamp Terminals at 50/60 Hz for 1 Minute) | 1000 V |
| AC Dielectric Strength (Between Terminals of Different Polarity and Between Each Terminal and Ground at 50/60 Hz for 1 Minute) | 2000 V |
| Vibration resistance | Malfunction: 10 to 55 Hz, 1.5-mm Double Amplitude (Malfunction within 1 ms) |
| Shock Resistance (Malfunction within 1 ms) | 300 m/s² |
| Mechanical Operation Durability [Min] | 100000 |
| Electrical Operation Durability [Min] | 100000 |
| Operating Ambient Temperature (with no Icing or Condensation) | -10 to 55 ºC |
| Operating Ambient Humidity | 35 to 85 % |
| Ambient Storage Temperature (with no Icing or Condensation) | -25 to 65 ºC |
| Shock Resistance (Destruction) | 500 m/s² |
