ABBOfficial Distributor

By ABB

SKU
MPN
1SBL407082R1322
Weight
1.365 kg
This product is Not Cancellable/Not Returnable

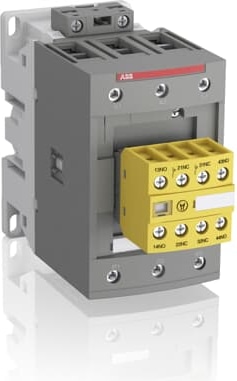

The AFS96-30-22-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with fixed 2 N.O + 2 N.C. front mounted auxiliary contact blocks with screw connections, controlling motors up to 45 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. AFS contactors can be easily integrated in machine manufacturer’s systems complying with main standards EN ISO 13849 and EN 62061 - guaranteeing the safe use of your machinery and equipment. An easily identifiable yellow low energy auxiliary contact block ensures the status feedback circuits required in machine safety applications. Thanks to the AF technology, the contactor has a wide control voltage range (100 ... 250 V), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

AFS contactors for safety applications

AFS contactors are specifically designed to enhance safety in machine applications. Featuring factory-mounted contact blocks with mechanically linked and mirror contacts, these contactors ensure reliable monitoring and control of circuits. With ABB’s comprehensive safety component range, building protection systems becomes more straightforward and efficient.

Main Benefits:

  • Safety Compliance: Meets major safety standards (EN ISO 13849 and EN 62061) for secure machinery and equipment use.

  • Guaranteed Status: Factory-mounted auxiliary contact blocks ensure accurate contactor status monitoring.

  • Easy Identification: Distinct yellow housing simplifies safety chain recognition.

  • Streamlined Safety Calculations: Safety values available in FSDT and Sistema tools for easier safety level assessments.

Main Features:

  • High Power Handling:

    • Up to 400 kW at 400 V AC-3

    • Up to 600 hp at 480 V

    • Up to 1050 A at 690 V AC-1

    • Up to 900 A for general use

  • Certified Safety Contacts: Mirror and mechanically linked contacts with third-party certification.

  • Fast Response: Opening times as low as 20 ms in certain models with PLC interfaces.

  • Precision Switching: Low-energy auxiliary contacts with a minimum switching capacity of 12 V, 3 mA (10⁻⁷).

  • Built-in Protection: Integrated surge suppression for enhanced safety.

Technical Specifications

Dimensions

Product Net Width70 mm
Product Net Depth / Length149 mm
Product Net Height125.5 mm
Product Net Weight1.22 kg

Technical

Number of Main Contacts NO3
Number of Main Contacts NC0
Number of Auxiliary Contacts NO2
Number of Auxiliary Contacts NC2
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22
Rated Operational VoltageAuxiliary Circuit 690 V
Rated Operational VoltageMain Circuit 1000 V
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Rated Frequency (f)Control Circuit 50 / 60 Hz
Rated Frequency (f)Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 130 A
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (Ie)(690 V) 40 °C 130 A
Rated Operational Current AC-1 (Ie)(690 V) 60 °C 105 A
Rated Operational Current AC-1 (Ie)(690 V) 70 °C 90 A
Rated Operational Current AC-3 (Ie)(415 V) 60 °C 96 A
Rated Operational Current AC-3 (Ie)(440 V) 60 °C 96 A
Rated Operational Current AC-3 (Ie)(500 V) 60 °C 80 A
Rated Operational Current AC-3 (Ie)(690 V) 60 °C 57 A
Rated Operational Current AC-3 (Ie)(1000 V) 60 °C 30 A
Rated Operational Current AC-3 (Ie)(380 / 400 V) 60 °C 105 A
Rated Operational Current AC-3 (Ie)(220 / 230 / 240 V) 60 °C 105 A
Rated Operational Current AC-3e (Ie)(415 V) 60 °C 96 A
Rated Operational Current AC-3e (Ie)(440 V) 60 °C 96 A
Rated Operational Current AC-3e (Ie)(500 V) 60 °C 80 A
Rated Operational Current AC-3e (Ie)(690 V) 60 °C 57 A
Rated Operational Current AC-3e (Ie)(380 / 400 V) 60 °C 105 A
Rated Operational Current AC-3e (Ie)(220 / 230 / 240 V) 60 °C 105 A
Rated Operational Power AC-3 (Pe)(415 V) 55 kW
Rated Operational Power AC-3 (Pe)(440 V) 55 kW
Rated Operational Power AC-3 (Pe)(500 V) 55 kW
Rated Operational Power AC-3 (Pe)(690 V) 55 kW
Rated Operational Power AC-3 (Pe)(1000 V) 40 kW
Rated Operational Power AC-3 (Pe)(380 / 400 V) 45 kW
Rated Operational Power AC-3 (Pe)(380 / 400 V) 55 kW
Rated Operational Power AC-3 (Pe)(220 / 230 / 240 V) 25 kW
Rated Operational Power AC-3 (Pe)(220 / 230 / 240 V) 30 kW
Rated Operational Power AC-3e (Pe)(415 V) 55 kW
Rated Operational Power AC-3e (Pe)(440 V) 55 kW
Rated Operational Power AC-3e (Pe)(500 V) 55 kW
Rated Operational Power AC-3e (Pe)(690 V) 55 kW
Rated Operational Power AC-3e (Pe)(380 / 400 V) 45 kW
Rated Operational Power AC-3e (Pe)(380 / 400 V) 55 kW
Rated Operational Power AC-3e (Pe)(220 / 230 / 240 V) 25 kW
Rated Operational Power AC-3e (Pe)(220 / 230 / 240 V) 30 kW
Rated Operational Current AC-15 (Ie)(500 V) 2 A
Rated Operational Current AC-15 (Ie)(690 V) 2 A
Rated Operational Current AC-15 (Ie)(24 / 127 V) 6 A
Rated Operational Current AC-15 (Ie)(220 / 240 V) 4 A
Rated Operational Current AC-15 (Ie)(400 / 440 V) 3 A
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 780 A
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 140 A
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 300 A
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1200 A
Rated Short-time Withstand Current Low Voltage (Icw)at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 450 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 140 A
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 A
Maximum Breaking Capacitycos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1150 A
Maximum Breaking Capacitycos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 750 A
Maximum Electrical Switching Frequency(AC-1) 600 cycles per hour
Maximum Electrical Switching Frequency(AC-15) 1200 cycles per hour
Maximum Electrical Switching Frequency(AC-2 / AC-4) 150 cycles per hour
Maximum Electrical Switching Frequency(AC-3) 1200 cycles per hour
Maximum Electrical Switching Frequency(DC-13) 900 cycles per hour
Rated Operational Current DC-1 (Ie)(110 V) 2 Poles in Series, 40 °C 130 A
Rated Operational Current DC-1 (Ie)(110 V) 2 Poles in Series, 60 °C 105 A
Rated Operational Current DC-1 (Ie)(110 V) 2 Poles in Series, 70 °C 90 A
Rated Operational Current DC-1 (Ie)(110 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-1 (Ie)(110 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-1 (Ie)(110 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-1 (Ie)(220 V) 3 Poles in Series, 40 °C 125 A
Rated Operational Current DC-1 (Ie)(220 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-1 (Ie)(220 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-1 (Ie)(72 V) 1-Pole, 40 °C 130 A
Rated Operational Current DC-1 (Ie)(72 V) 1-Pole, 60 °C 105 A
Rated Operational Current DC-1 (Ie)(72 V) 1-Pole, 70 °C 90 A
Rated Operational Current DC-1 (Ie)(72 V) 2 Poles in Series, 40 °C 130 A
Rated Operational Current DC-1 (Ie)(72 V) 2 Poles in Series, 60 °C 105 A
Rated Operational Current DC-1 (Ie)(72 V) 2 Poles in Series, 70 °C 90 A
Rated Operational Current DC-1 (Ie)(72 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-1 (Ie)(72 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-1 (Ie)(72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (Ie)(110 V) 2 Poles in Series, 40 °C 130 A
Rated Operational Current DC-3 (Ie)(110 V) 2 Poles in Series, 60 °C 105 A
Rated Operational Current DC-3 (Ie)(110 V) 2 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (Ie)(110 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-3 (Ie)(110 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-3 (Ie)(110 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (Ie)(220 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-3 (Ie)(220 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-3 (Ie)(220 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (Ie)(72 V) 1-Pole, 40 °C 130 A
Rated Operational Current DC-3 (Ie)(72 V) 1-Pole, 60 °C 105 A
Rated Operational Current DC-3 (Ie)(72 V) 1-Pole, 70 °C 90 A
Rated Operational Current DC-3 (Ie)(72 V) 2 Poles in Series, 40 °C 130 A
Rated Operational Current DC-3 (Ie)(72 V) 2 Poles in Series, 60 °C 105 A
Rated Operational Current DC-3 (Ie)(72 V) 2 Poles in Series, 70 °C 90 A
Rated Operational Current DC-3 (Ie)(72 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-3 (Ie)(72 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-3 (Ie)(72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (Ie)(110 V) 2 Poles in Series, 40 °C 130 A
Rated Operational Current DC-5 (Ie)(110 V) 2 Poles in Series, 60 °C 105 A
Rated Operational Current DC-5 (Ie)(110 V) 2 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (Ie)(110 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-5 (Ie)(110 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-5 (Ie)(110 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (Ie)(220 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-5 (Ie)(220 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-5 (Ie)(220 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (Ie)(72 V) 1-Pole, 40 °C 130 A
Rated Operational Current DC-5 (Ie)(72 V) 1-Pole, 60 °C 105 A
Rated Operational Current DC-5 (Ie)(72 V) 1-Pole, 70 °C 90 A
Rated Operational Current DC-5 (Ie)(72 V) 2 Poles in Series, 40 °C 130 A
Rated Operational Current DC-5 (Ie)(72 V) 2 Poles in Series, 60 °C 105 A
Rated Operational Current DC-5 (Ie)(72 V) 2 Poles in Series, 70 °C 90 A
Rated Operational Current DC-5 (Ie)(72 V) 3 Poles in Series, 40 °C 130 A
Rated Operational Current DC-5 (Ie)(72 V) 3 Poles in Series, 60 °C 105 A
Rated Operational Current DC-5 (Ie)(72 V) 3 Poles in Series, 70 °C 90 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A / 144 W
Rated Operational Current DC-13 (Ie)(48 V) 2.8 A / 134 W
Rated Operational Current DC-13 (Ie)(72 V) 1 A / 72 W
Rated Operational Current DC-13 (Ie)(110 V) 0.55 A / 60 W
Rated Operational Current DC-13 (Ie)(125 V) 0.55 A / 69 W
Rated Operational Current DC-13 (Ie)(220 V) 0.27 A / 60 W
Rated Operational Current DC-13 (Ie)(250 V) 0.27 A / 68 W
Rated Operational Current DC-13 (Ie)(400 V) 0.15 A / 60 W
Rated Operational Current DC-13 (Ie)(500 V) 0.13 A / 65 W
Rated Operational Current DC-13 (Ie)(600 V) 0.1 A / 60 W
Rated Insulation Voltage (Ui)acc. to IEC 60947-4-1 1000 V
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 V
Rated Insulation Voltage (Ui)acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Maximum Mechanical Switching Frequency3600 cycles per hour
Rated Control Circuit Voltage (Uc)50 Hz 100 ... 250 V
Rated Control Circuit Voltage (Uc)60 Hz 100 ... 250 V
Rated Control Circuit Voltage (Uc)DC Operation 100 ... 250 V
Operate TimeBetween Coil De-energization and NC Contact Closing 19 ... 105 ms
Operate TimeBetween Coil De-energization and NO Contact Opening 17 ... 100 ms
Operate TimeBetween Coil Energization and NC Contact Opening 38 ... 95 ms
Operate TimeBetween Coil Energization and NO Contact Closing 42 ... 100 ms
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting by Screws (not supplied)2 x M4 or 2 x M6 screws placed diagonally
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 6 ... 50 mm²
Connecting Capacity Main CircuitFlexible with Insulated Ferrule 1/2x 6 ... 50 mm²
Connecting Capacity Main CircuitRigid Stranded 1x 6 ... 70 mm²
Connecting Capacity Main CircuitRigid Stranded 2x 6 ... 50 mm²
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Auxiliary CircuitFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Connecting Capacity Auxiliary CircuitFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Connecting Capacity Auxiliary CircuitRigid 1/2x 1 ... 2.5 mm²
Connecting Capacity Control CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control CircuitFlexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Connecting Capacity Control CircuitFlexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Connecting Capacity Control CircuitRigid 1/2x 1 ... 2.5 mm²
Wire Stripping LengthAuxiliary Circuit 10 mm
Wire Stripping LengthControl Circuit 10 mm
Wire Stripping LengthMain Circuit 17 mm
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal TypeScrew Terminals

Technical UL/CSA

Maximum Operating Voltage UL/CSAMain Circuit 600 V
General Use Rating UL/CSA(600 V AC) 115 A
Horsepower Rating UL/CSA(120 V AC) Single Phase 7-1/2 hp
Horsepower Rating UL/CSA(200 ... 208 V AC) Three Phase 30 hp
Horsepower Rating UL/CSA(220 ... 240 V AC) Three Phase 40 hp
Horsepower Rating UL/CSA(240 V AC) Single Phase 20 hp
Horsepower Rating UL/CSA(440 ... 480 V AC) Three Phase 75 hp
Horsepower Rating UL/CSA(550 ... 600 V AC) Three Phase 75 hp
Connecting Capacity Main Circuit UL/CSARigid Stranded 1/2x 6-1 AWG
Tightening Torque UL/CSAAuxiliary Circuit 11 in·lb
Tightening Torque UL/CSAControl Circuit 11 in·lb
Tightening Torque UL/CSAMain Circuit 53 in·lb

Why Proax for ABB AFS96-30-22-13?

Proax is an authorized distributor of ABB AFS96-30-22-13 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Alternate NamesAFS96302213
Pack Size1
Best Sellersin Contactors

Not in stock

Request lead time or order—we'll ensure quick delivery

ABB Availability
