1410632
Official DistributorSKU
PHX1410632
MPN
SAC-4PY-MT/2XFT VP
Weight
0.038 kg
Series SAC-4PY

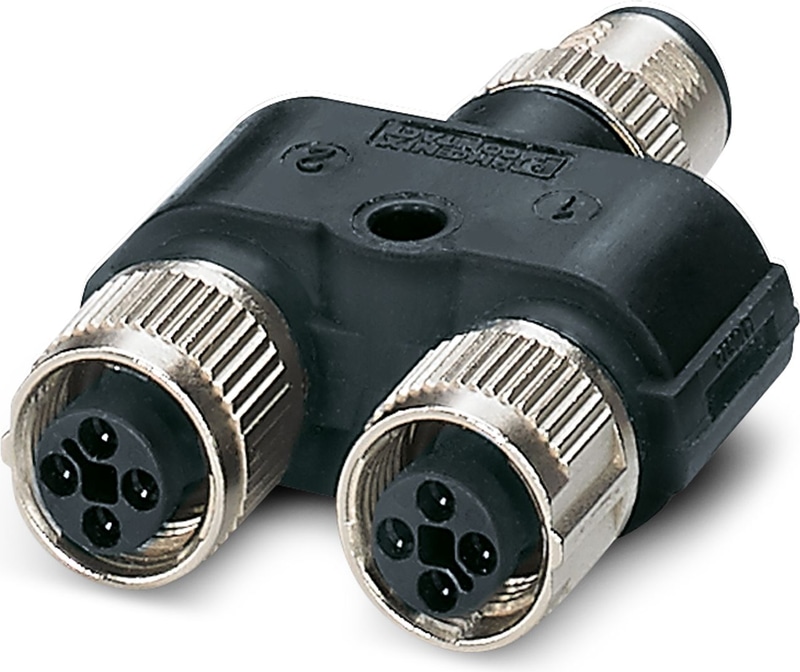

SAC-4PY-MT/2XFT VP - Y distributor
Y distributor, 4-position, Plug straight M12, coding: T, on Socket straight M12, coding: T and Socket straight M12, coding: T, For direct current up to 12 A/63 V
- High-performance: DC connectors for up to 12 A and 63 V DC
Technical Specifications
Product properties
| Application | Power supply |
| Number of Positions | 4 |
| No. of cable outlets | 2 |
| Shielded | no |
| Coding | T |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 2x 12 A (at 40 °C) |
Signaling
| Status display | No |
| Status display present | No |
Dimensions
| Length | 52.5 mm |
| Center distance | 21 mm |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material for screw connection | Zinc die-cast, nickel-plated |
Connection 1
| Type | Plug straight M12 |
| Coding type | T |
Connection 2
| Type | Socket straight M12 |
| Coding type | T |
Connection 3
| Type | Socket straight M12 |
| Coding type | T |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
Standards and Regulations
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-111 |
Accessories
Why Proax for Phoenix Contact 1410632?
Proax is an authorized distributor of Phoenix Contact 1410632 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
