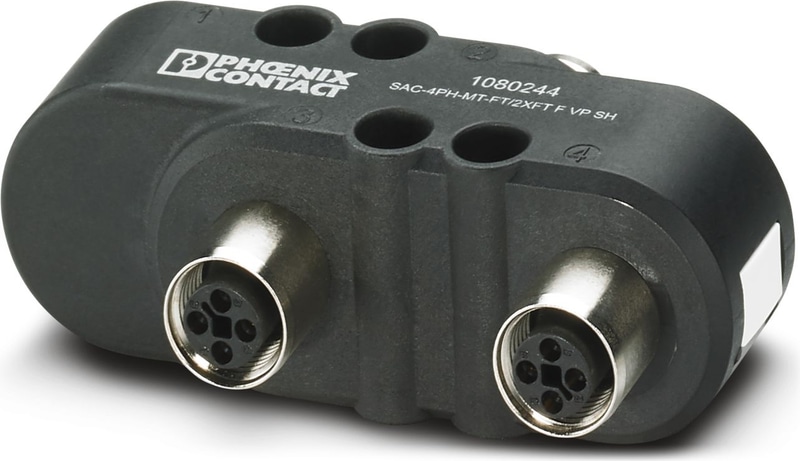

SAC-4PH-MT-FT/2XFT F VP SH - H distributor
H distributor, 4-position, Plug straight M12, coding: T, on Socket straight M12, coding: T and Socket straight M12, coding: T, for direct current up to 16 A/63 V, Parallel distributor
- High-performance: DC connectors for up to 16 A and 63 V DC
Technical Specifications
Notes
| Assembly instruction: | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Notes on the product family | UL approval in preparation |
Product properties
| Application | Power supply |
| Number of Positions | 4 |
| No. of cable outlets | 3 |
| Shielded | yes |
| Coding | T |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 16 A (at 40 °C) |
Signaling
| Status display | No |
| Status display present | No |
Dimensions
| Width | 28 mm |
| Height | 47 mm |
| Length | 80 mm |
| Center distance | 35 mm |
Material specifications
| Material | CuZn |
| Material | CuNi |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material of grip body | PBT |
| Contact surface material | Au |
| Contact carrier material | PBT |
| Material for screw connection | Brass, nickel-plated |
Connection 1
| Type | Plug straight M12 |
| Coding type | T |
Connection 2
| Type | Socket straight M12 |
| Coding type | T |
Connection 3
| Type | Socket straight M12 |
| Coding type | T |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Plug / socket) |
Standards and Regulations
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-111 |
