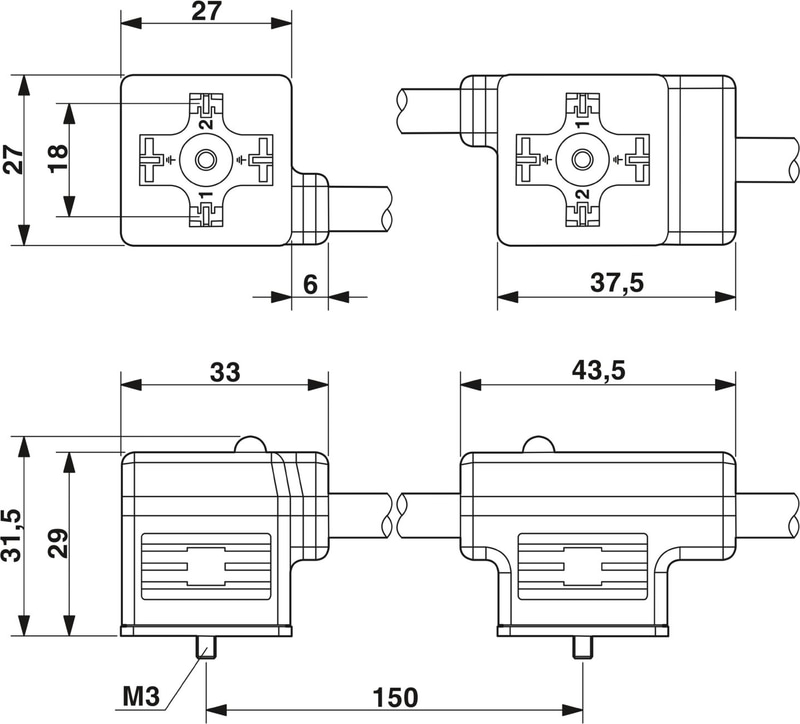

Double valve connector, 2x type A
1400330
Official DistributorSKU
PHX1400330
MPN
SAC-4P1,5/A1LSV/0,15-PVC/A1LSV
Weight
0.149 kg
SAC-4P1,5/A1LSV/0,15-PVC/A1LSV - Sensor/actuator cable
Sensor/actuator cable, 4-position, PVC, black, free cable end, on Valve connector A, with 1 LED, Wiring: Varistor and Valve connector A, with 1 LED, Wiring: Varistor, cable length: 1.5 m
Technical Specifications
Product properties
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | no |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | TPU |
| Material housing valve plug | PBT |
| Contact Material | CuSn |
| Valve plug contact insert material | PBT |
| Contact surface material | Ag |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V AC |
| Nominal voltage UN | 24 V DC |
| Nominal current IN | 4 A |
Signaling
| Status display | 1 LED |
| Status display present | Yes |
Connection 1
| Type | free cable end |
Connection 2
| Type | Valve connector A |
| Material | CuSn (Contact) |
| Material | Ag (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
Connection 3
| Type | Valve connector A |
| Material | CuSn (Contact) |
| Material | Ag (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
Cable/line
| Cable Length | 1.5 m |
PVC, 0.75 mm², black [534]
| Number of Positions | 4 |
| Shielded | no |
| Cable Type | PVC, 0.75 mm², black [534] |
| Conductor structure signal line | 24x 0.20 mm |
| AWG Signal Line | 18 |
| Conductor Cross Section | 4x 0.75 mm² (Signal line) |
| Wire diameter incl. insulation | 1.7 mm ±0.1 mm |
| External Cable Diameter | 5.70 mm ±0.2 mm |
| Outer sheath, material | PVC |
| External sheath, color | black |
| Conductor material | Bare Cu litz wires |
| Single wire, color | black 1, black 2, black 3, green/yellow |
| Overall twist | 4 wires, twisted |
| Max. conductor resistance | 26 Ω/km (at 20 °C) |
| Insulation resistance | min. 20 MΩ*km (at 20 °C) |
| Nominal voltage, cable | 300 V |
| Test voltage | 1200 V |
| Minimum bending radius, fixed installation | 5 x D |
| Smallest bending radius, fixed installation | 29 mm |
| Flame resistance | DIN VDE 0482 |
| Flame resistance | DIN EN 50265-2-1 |
| Flame resistance | in acc. to UL VW1 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (valve plug) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 70 °C (Cable, flexible installation) |
Why Proax for Phoenix Contact 1400330?
Proax is an authorized distributor of Phoenix Contact 1400330 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
