9635350
Official DistributorBy Rittal
SKU
RIT9635350
Weight
0.58 kg
Series Component Adapters 3-pole

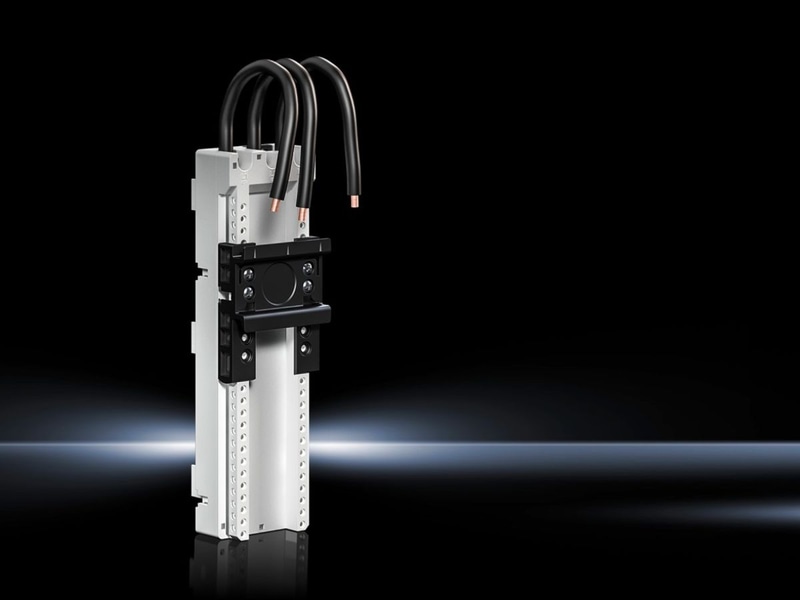

SV Component adaptor (Comfort), 32 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 10 (L: 100 mm), WH: 45x160 mm
Component Adapters 3-pole
For assembly of switchgear and protective devices. Versions with integral fuse holder, fixed support rail (basic) or adjustable support rail (comfort).
Technical Specifications
Dimensions
| Width | 45 mm |
| Height | 160 mm |
| Depth | 34.5 mm |
| Version | Comfort |
| Function principle | For mechanical attachment and direct contacting of electrical equipment on the board |
| Material | Polyamide Fire behavior corresponding to UL 94 |
| Color | RAL 7035 |
| Note | The technical data may vary for UL applications. |
| Rated current max. | 32 A |
| Rated operating voltage | 600 V (DC), 3~ |
| Number of Poles | 3-pole |
| Electrical UL ratings | Rated operating voltage (max.) UL: 600 V AC |
| Connection cables (AWG) | AWG 10 |
| Length of connection cable | 160 mm |
| Support rails Qty/height | 1 / 10 mm |
| Support rail type | Adjustable |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.58 kg |
| Copper weight (kg per piece) | 0.055 |
| Customs tariff number | 85369095 |
| EAN | 4028177817333 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
Why Proax for Rittal 9635350?
Proax is an authorized distributor of Rittal 9635350 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
