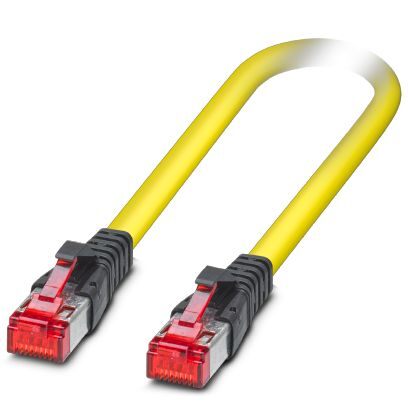

Patch cable NBC-R4AC1/1,0-94G/R4AC1-YE
Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 8, 10 Gbps, CAT6A, Ethernet
Technical Specifications
Cable type
| Cable Type | Ethernet 10 Gbit |
| Fixed cable length | 1.00 m |
| Shielded | yes |
| Cable structure | 2x2xAWG26/7; S-FTP |
| Conductor structure signal line | 6.00 mm +0.2 mm -0.1 mm |
| AWG Signal Line | 26 |
| Shielding | S/FTP |
| Insulation resistance | 2000 MΩ*km (500 V) |
| Coupling resistance | 30.00 mΩ/m (30 MHz) |
| Test voltage | 1000 V DC (1 minute) |
| Material wire insulation | PE |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C (RJ45 connector) |
| Ambient Temperature (Operation) | -25 °C ... 75 °C (cable) |
External sheath
| Outer sheath, material | PUR |
| External sheath, color | yellow |
General
| Conductor length | 1.00 m |
| Nominal voltage UN | 48 V |
| Transmission characteristics (category) | CAT6A |
| Transmission Speed | 10 Gbps |
| Degree of Protection | IP20 |
Behavior in fire
| Flame resistance | IEC 60332-1 |
Standards and Regulations
| Flame resistance | IEC 60332-1 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 1421170?
Proax is an authorized distributor of Phoenix Contact 1421170 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
