Phoenix Contact 1421140
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU

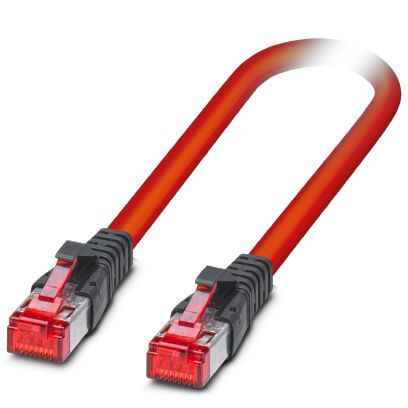

Patch cable NBC-R4AC1/1,0-94G/R4AC1-RD

Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 8, 10 Gbps, CAT6A, Ethernet

Technical Specifications

Cable type

Cable TypeEthernet 10 Gbit
Fixed cable length1.00 m
Shieldedyes
Cable structure2x2xAWG26/7; S-FTP
Smallest bending radius, movable installation25 mm (without load)
Conductor structure signal line6.00 mm +0.2 mm -0.1 mm
AWG Signal Line26
ShieldingS/FTP
Insulation resistance2000 MΩ*km (500 V)
Coupling resistance30.00 mΩ/m (30 MHz)
Test voltage1000 V DC (1 minute)
Material wire insulationPE

Ambient conditions

Ambient Temperature (Operation)-25 °C ... 60 °C (RJ45 connector)
Ambient Temperature (Operation)-25 °C ... 75 °C (cable)

External sheath

Outer sheath, materialPUR
External sheath, colorred

General

Conductor length1.00 m
Nominal voltage UN48 V
Transmission characteristics (category)CAT6A
Transmission Speed10 Gbps
Degree of ProtectionIP20

Behavior in fire

Flame resistanceIEC 60332-1

Standards and Regulations

Flame resistanceIEC 60332-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values

Why Proax for Phoenix Contact 1421140?

Proax is an authorized distributor of Phoenix Contact 1421140 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information

Pack Size1
