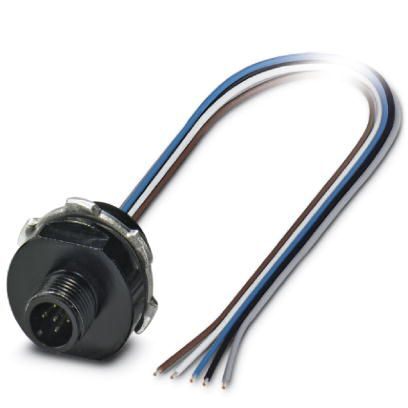

Panel feed-through - SACC-E-M12MS-5CON-NPT12/1,0
Panel feed-through, 5-position/PVC, Plug, straight, M12, A-coded, on free cable end, Front mounting, with 1/2 inch-14 NPT mounting thread, Individual wires, cable length: 1 m, 0.34 mm², PVC litz wire
Technical Specifications
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
Dimensions
| Length of Cable | 1 m |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 105 °C |
| Ambient Temperature (Operation) | -20 °C ... 105 °C |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Rated current at 40°C | 4 A |
| Rated voltage | 300 V |
| Number of Positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Standards/regulations | UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection Method | Individual wires |
| Insertion/withdrawal cycles | > 500 |
| Torque | 1.12 Nm (Installation-side) |
| Mounting Type | Front mounting, with 1/2 inch-14 NPT mounting thread |
Material
| Flammability rating according to UL 94 | V0 |
| Contact Material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Aluminum alloy |
Cable
| Cable structure | 5 x 22 AWG |
| Conductor Cross Section | 0.34 mm² |
| AWG Signal Line | 22 |
| Conductor structure signal line | 7x (30 AWG strand) |
| Core diameter including insulation | 1.78 mm |
| Thickness, insulation | 0.76 mm |
| Wire colors | Brown, white, blue, black, gray |
| Material, inner sheath | PVC |
| Material conductor insulation | PVC |
| Standards/specifications | M12 connector IEC 61076-2-101 |
| Standards/specifications | UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
| Standards/specifications | UL 2238 Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
