Series SACCBP-MS

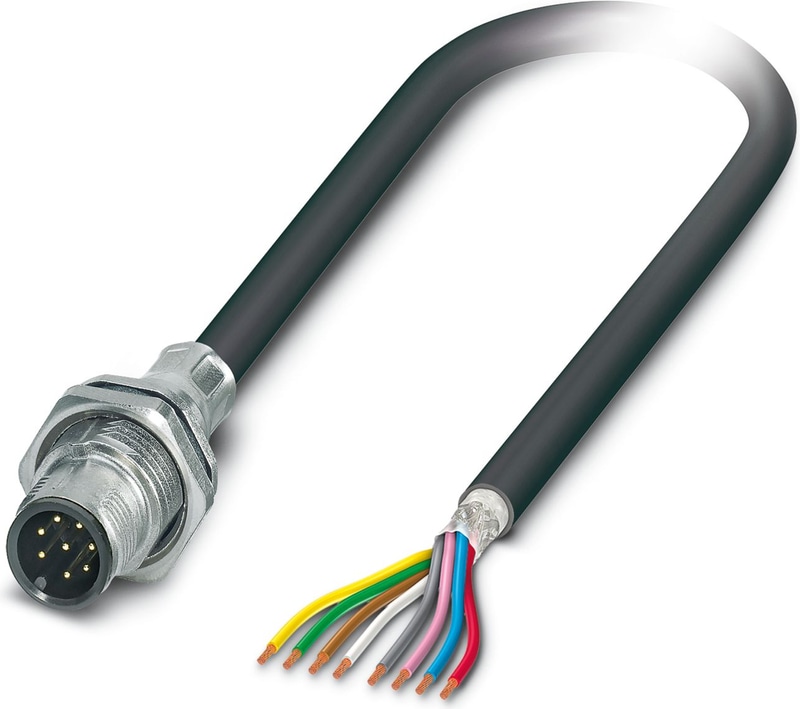

SACCBP-MS-8CON-M16/2,0-PUR SCO - Device connector rear mounting

Device connector rear mounting, Universal, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.25 mm2, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239257

  • Preassembled with cables in various standard lengths for immediate use
  • Customer-specific assemblies and cable lengths can be supplied
  • Sealed on the cable side for optimum tightness of seal
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting M16 x 1.5 With flat nut
Assembly instructionsWith flat nut

Product properties

Sensor TypeUniversal
Number of Positions8
No. of cable outlets1
Shieldedyes
CodingA
Thread typeM12

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Outer sheath, materialPUR
Conductor materialBare Cu litz wires

Electrical properties

Rated surge voltage0.8 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN2 A
Max. conductor resistance78 Ω/km

Conductor connection

Connection MethodCable connection
Contact connection typePin
Conductor Cross Section8x 0.25 mm² (Signal line)
Tightening torque3 Nm ... 4 Nm (Installation-side)

Mechanical data

Insertion/withdrawal cycles> 100
Max. bending cycles2000000

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA

Connection 2

Head designfree cable end

Cable/line

Cable Length2 m

PUR halogen-free black [PUR]

Cable weight53 kg/km
UL AWM style20549 / 10493 (80°C/300 V)
Number of Positions8
Shieldedyes
Cable TypePUR halogen-free black [PUR]
Conductor structure signal line32x 0.10 mm
AWG Signal Line24
Conductor Cross Section8x 0.25 mm² (Signal line)
Wire diameter incl. insulation1.17 mm ±0.02 mm
External Cable Diameter5.90 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, green, yellow, gray, pink, blue, red
Thickness, insulationapprox. 0.20 mm
Thickness, outer sheathapprox. 0.50 mm
Overall twist8 wires around filler to the core
Optical shield covering85 %
Max. conductor resistance≤ 78 Ω/km (at 20 °C)
Insulation resistance≥ 1 GΩ*km (at 20 °C)
Nominal voltage, cable≤ 300 V AC
Test voltage≥ 3000 V AC (Spark test)
Test voltage Core/Shield≥ 2000.00 V AC (for 60 s)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation30 mm
Smallest bending radius, movable installation59 mm
Max. bending cycles2000000
Halogen-freein accordance with DIN VDE 0472 part 815
Halogen-freeaccording to IEC 60754-1
Flame resistancein acc. with UL FT-2
Flame resistanceaccording to UL 758/1581 (horizontal)
Flame resistancein accordance with UL 758/1581 FT2
Flame resistanceAccording to DIN EN 60332-2-2 (20 s)
Resistance to Oilin accordance with IEC 60811-404
Other resistancehydrolysis and microbe resistant
Other resistanceResistant to salt water
Other resistancelow-abrasion
Other resistancepartly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Special PropertiesFlexible cable conduit capable
Ambient Temperature (Operation)-40 °C ... 80 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 80 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)

Standards and Regulations

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Accessories
  • Phoenix Contact1453368
    1453368
    Screw plug - SACC-M16-SEALING PLUG SET
  • Phoenix Contact1560251
    1560251
    Sealing cap - PROT-M12 FS
  • Phoenix Contact1430488
    1430488
    M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field
  • Phoenix Contact1430394
    1430394
    Flat gasket - SACC-M16-SEAL CLM
