9635200
Official DistributorBy Rittal
SKU
RIT9635200
Weight
0.788 kg
Series Connection Adapters 3-pole

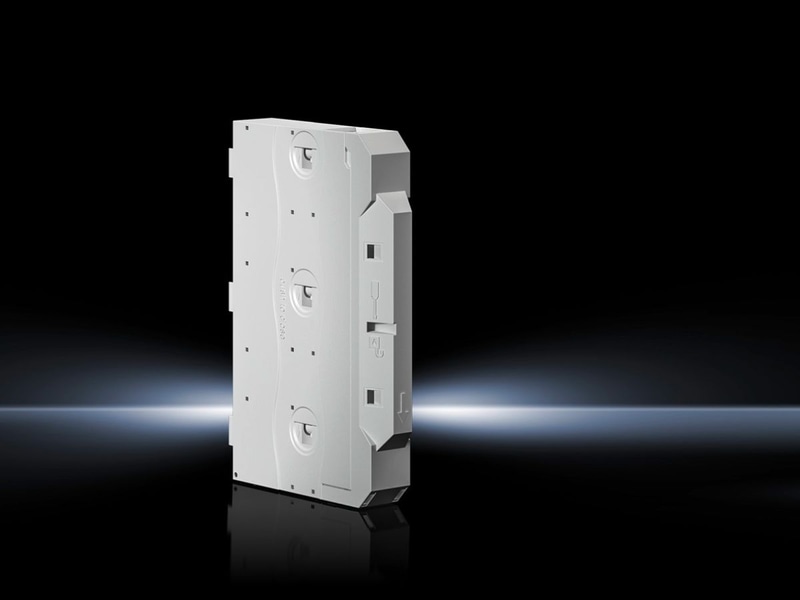

Connection adapter 63 A, 690 V (AC), 600 V (DC), 3-pole, cable outlet top/bottom, round conductor connection 1.5-16 mm² (RiLine Compact)
Connection Adapters 3-pole
For connecting round conductors.
Technical Specifications
Dimensions
| Width | 22.5 mm |
| Height | 160 mm |
| Depth | 115.5 mm |
Electrical UL ratings
| Rated current (UL) | 48 A |
| Rated operating voltage (max.) UL | 600 V AC |
| Function principle | To supply power to the board |
| Material | Polyamide Fire behavior corresponding to UL 94 |
| Color | RAL 7035 |
| Note | The technical data may vary for UL applications. |
| Note on Model No. | When using 16 mm² fine-wire round conductors with wire end ferrules, the following crimping pliers are recommended: Rittal 4054.004, Weidmüller PZ 16, Phoenix Contact Crimpfox 25R |
| Rated current max. | 63 A |
| Rated operating voltage | 600 V (DC), 3~ |
| Number of Poles | 3-pole |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Spring terminal |
| Connection of round conductors, fine wire without wire end ferrule | 1.5 ‐ 16 mm² |
| Connection of round conductors, fine wire with wire end ferrule | 1.5 ‐ 16 mm² |
| Connection of round conductors, multi-wire | 1.5 ‐ 16 mm² |
| Connection of round conductors, single-wire | 1.5 ‐ 10 mm² |
| Connection for round conductor cross-sections | AWG 6 - 16 |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.788 kg |
| Copper weight (kg per piece) | 0.023 |
| Customs tariff number | 85369010 |
| EAN | 4028177817395 |
| ETIM 7.0 | EC001531 |
| ECLASS 8.0 | 27370304 |
