FL SWITCH 3012E-2FX
Weight
1.64 kg
Series FL-SWITCH

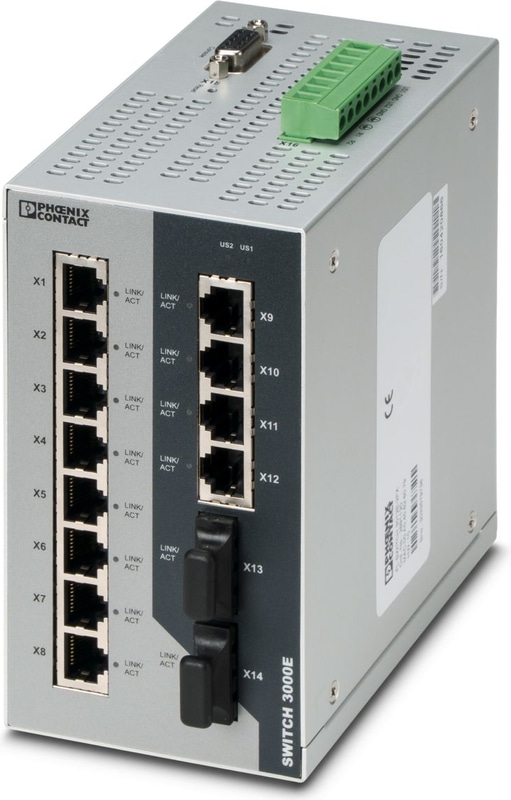

FL SWITCH 3012E-2FX - Industrial Ethernet Switch
Managed Ethernet switch meets IEC 61850-3 and IEEE 1613 standards. Provides 12 RJ45 ports at 10/100 Mbps, two SC-D MM fiber optic ports and operating temperature of -40°C ... +70°C.
- Network structure according to IEC 61850
- IEEE 1613
FL-SWITCH
Phoenix Contact FL SWITCH Series - Industrial Ethernet switches for automation and control systems.
Unmanaged Switches (plug-and-play):
- 1000/1100 Series: Compact design, 10/100 Mbps (1000) or up to 1 Gbps (1100), supports PROFINET/EtherNet/IP
- 1600/1700 Series: Environmental resistance for harsh field conditions
- 1800/1900 Series: High port density (up to 24 ports) for data centers/control rooms
Managed Switches (advanced features):
- 2000 Series: Cost-effective, Fast/Gigabit Ethernet, redundancy (RSTP/MRP), multicast filtering
- 3000/4000 Series: Advanced diagnostics and security, 15ms failover, up to 64 VLANs, IEEE 802.1x authentication, PoE options (60W per port)
Designed for reliable industrial network connectivity with appropriate features for different application requirements.
Technical Specifications
Dimensions
| Width | 78.6 mm |
| Height | 145 mm |
| Depth | 125 mm |
Material specifications
| Housing Material | Aluminum |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet (RJ45)
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m |
| No. of channels | 12 (RJ45 ports) |
Fiber optic interface
| Connection Method | SC |
| Transmission Speed | 100 Mbps (full duplex) |
| Transmission physics | multi-mode fiberglass |
| Transmission length | 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000) |
| Wavelength | 1300 nm |
| No. of channels | 2 (SC multi-mode) |
Product properties
| Product family | Managed Switch 3000 |
| Type | Block design |
| MTTF | 23.3 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
Switch functions
| Basic Functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
| Signal contact control voltage | 24 V DC |
| Signal contact control current | 100 mA |
| Redundancy | ERR (Extended ring redundancy) |
| Status and diagnostic indicators | LEDs: US1, US2 (redundant voltage supply), link and activity per port |
Security functions
| Basic Functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Electrical properties
| Local diagnostics | US1, US2 Supply voltage Green LED |
| Local diagnostics | LNK/ACT Link status/data transmission Green LED |
| Test section | Supply voltage/functional ground 500 V 1 min. |
| Transmission medium | Copper |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 12 V DC ... 48 V DC |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Typical current consumption | 354 mA (at US = 24 V DC) |
Function
| Signal contact control voltage | 24 V DC |
| Signal contact control current | 100 mA |
Connection technology
| Connection name | Power supply |
| pluggable | yes |
Power supply
| Connection Method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
| Air pressure (storage/transport) | 57 kPa ... 108 kPa (up to 4850 m above mean sea level) |
Conformity/Approvals
| Conformance | CE-compliant |
EMC data
| Noise immunity | IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005 |
| Noise emission | EN 61000-6-4 |
Functionality
| Basic Functions | Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts |
Signaling
| Status display | LEDs: US1, US2 (redundant voltage supply), link and activity per port |
Accessories
MSTB 2,5/ 8-ST - PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MSTB 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard
Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
FL SEC PAC 4TX - Layer1 security elements for 4 RJ45 network connections for use with patch boxes and panels
NBC-R4AC/10G-R4AC/10G-94F/2,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 2.0 m- NBC-R4AC/10G-R4AC/10G-94F/3,0 - Patch cable, CAT6A, 4-pair, shielded, connection not crossed (line), assembled at both ends with RJ45/IP20 connectors, outer sheath material: PUR, length: 3.0 m
NBC-R4AC/1,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 1 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET- NBC-R4AC/2,0-93B/R4AC - Patch cable, degree of protection: IP20, cable length: 2 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
- Patch cable, degree of protection: IP20, cable length: 5 m, number of positions: 4, 100 Mbps, CAT5, material: PA 6.6, PROFINET
