CHARX SEC-3050
Weight
0.248 kg
This product is Not Cancellable/Not Returnable
Series CHARX-SEC

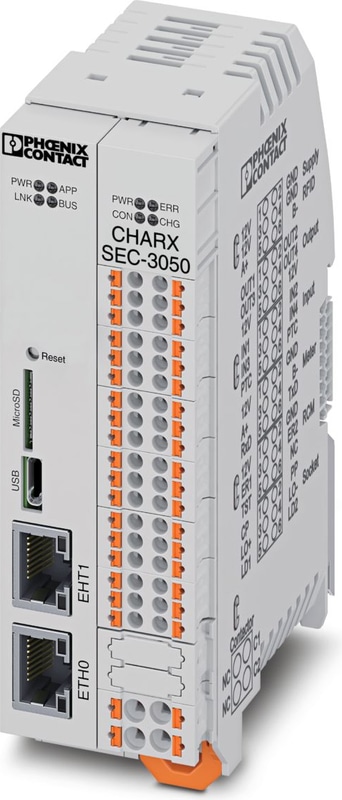

CHARX SEC-3050 - AC charging controller
CHARX control modular, AC charging controller, with Embedded Linux system, IEC 61851-1, ISO 15118, operating mode: Stand-Alone, Client, Server, interface: Ethernet (2x), CHARX control modular system bus, MICRO-USB type C, communication protocol: OCPP 1.6J, Modbus/TCP, MQTT, Connectable peripheral devices: Energy meter, RFID, DC residual current detection, DIN rail mounting
Documents
Technical Specifications
Product properties
| Product family | CHARX control modular |
| Design | with Embedded Linux system |
| Operating mode | Stand-Alone |
| Operating mode | Client |
| Operating mode | Server |
| Charging standard | IEC 61851-1 |
| Charging standard | ISO/IEC 15118 |
| Charging mode | Mode 3, Case B + C |
Insulation characteristics
| Overvoltage category | III |
IEC 61131 runtime system
| Data storage system | 8 GByte (eMMC) |
Supply
| Supply Voltage | 12 V DC ±5 % |
| Supply Voltage Range | 11.4 V DC ... 12.6 V DC |
| Max. current consumption | 2 A (Stand-alone operation) |
Digital
| Number of digital inputs | 4 |
| Description of the input | Digital input |
| Nominal input voltage UN | 12 V |
| Input voltage range U1 | 0 V ... 3 V (Off) |
| Input voltage range U2 | 9 V ... 15 V (On) |
| Output name | Digital output |
| Number outputs | 4 |
| Maximum output voltage | ≤ 12 V (Low-side operation) |
| Maximum output current | max. 600 mA |
Conductor connection
| Connection Method | pluggable |
| Connection Method | Push-in technology |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
Interfaces
| Interface | Ethernet (2x) |
| Interface | CHARX control modular system bus |
| Interface | USB-C |
Ethernet
| Interface | Ethernet |
| Connection Method | RJ45 jack |
| Number of interfaces | 2 |
| Number of supported devices | 2 |
| Serial transmission speed | 10/100 Mbps |
| Transmission length | 100 m |
| Protocols Supported | OCPP 1.6J |
| Protocols Supported | Modbus/TCP |
| Protocols Supported | MQTT |
| Protocols Supported | HTTP |
| Protocols Supported | HTTPS |
Others
| Interface | Configuration and diagnostics |
| Connection Method | USB type C |
| Number of interfaces | 1 |
| Protocols Supported | RNDIS |
| Interface | Energy meter |
| Bus system | RS-485 |
| Transmission speed range | 9.6 kbps ... 115.2 kbps (Automatic setting in accordance with the selected energy meter) |
| Interface | RFID readers |
| Bus system | RS-485 |
| Transmission speed range | 9.6 kbps ... 115.2 kbps (Automatic setting in accordance with the selected RFID reader) |
| Interface | CHARX control modular system bus |
| Connection Method | DIN rail bus connectors |
| Number of interfaces | 1 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Air pressure (storage/transport) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
Conformity/Approvals
| Conformance | CE-compliant |
Standards
| Standards/regulations | IEC 61851-1 |
| Standards/regulations | ISO 15118 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly note | DIN rail mounting |
| Mounting Position | any |
Why Proax for Phoenix Contact 1139018?
Proax is an authorized distributor of Phoenix Contact 1139018 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
