Official DistributorSKU
MPN
CHARX SEC-1000
Weight
0.173 kg
Series CHARX-SEC

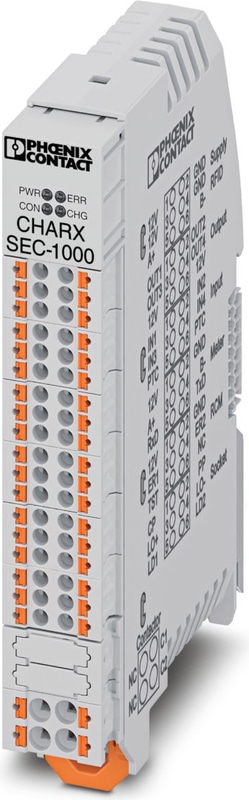

CHARX SEC-1000 - AC charging controller
CHARX control modular, AC charging controller, IEC 61851-1, operating mode: Stand-Alone, Client, interface: CHARX control modular system bus, Connectable peripheral devices: Energy meter, RFID, DC residual current detection, DIN rail mounting
Technical Specifications
Product properties
| Product family | CHARX control modular |
| Operating mode | Stand-Alone |
| Operating mode | Client |
| Charging standard | IEC 61851-1 |
| Charging mode | Mode 3, Case B + C |
Insulation characteristics
| Overvoltage category | III |
Supply
| Supply Voltage | 12 V DC ±5 % |
| Supply Voltage Range | 11.4 V DC ... 12.6 V DC |
| Max. current consumption | 2 A (Stand-alone operation) |
Digital
| Number of digital inputs | 4 |
| Description of the input | Digital input |
| Nominal input voltage UN | 12 V |
| Input voltage range U1 | 0 V ... 3 V (Off) |
| Input voltage range U2 | 9 V ... 15 V (On) |
| Output name | Digital output |
| Number outputs | 4 |
| Maximum output voltage | ≤ 12 V (Low-side operation) |
| Maximum output current | max. 600 mA |
Conductor connection
| Connection Method | pluggable |
| Connection Method | Push-in technology |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
Interfaces
| Interface | CHARX control modular system bus |
Others
| Interface | Energy meter |
| Bus system | RS-485 |
| Transmission speed range | 9.6 kbps ... 115.2 kbps (Automatic setting in accordance with the selected energy meter) |
| Interface | RFID readers |
| Bus system | RS-485 |
| Transmission speed range | 9.6 kbps ... 115.2 kbps (Automatic setting in accordance with the selected RFID reader) |
| Interface | CHARX control modular system bus |
| Connection Method | DIN rail bus connectors |
| Number of interfaces | 1 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above mean sea level) |
| Air pressure (storage/transport) | 58 kPa ... 106 kPa (up to 4500 m above mean sea level) |
Conformity/Approvals
| Conformance | CE-compliant |
Standards
| Standards/regulations | IEC 61851-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | DIN rail mounting |
| Mounting Position | any |
