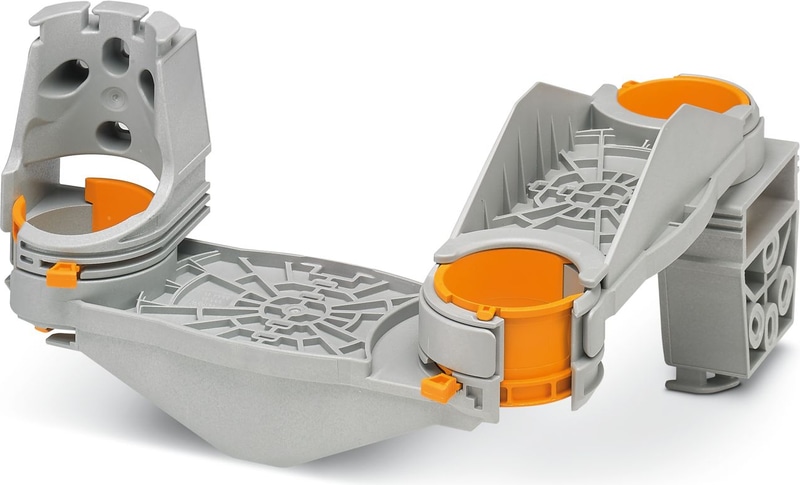

CGSA 50 - Cable guiding system
Cable guiding system, with swivel joint for opening, depth: 140.5 mm, width: 68 mm, height: 218 mm, diameter: 42 mm, color: gray
- Subsequent wiring is easy, thanks to swivel joint openings that can be operated without tools
- Easily plan cable harnesses: the cable length is predefined through the swivel arm
- Integrated flanges with strain relief make assembly quick and easy
- Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
- Route preassembled cables and wires easily, thanks to the patent-pending swivel joint
- High-grade elastic and mechanically resilient plastic, certified according to UL 94 for flammability rating: V0
- Cable routing for the control cabinet door can be planned in the CAD system, thanks to the defined installation space and swivel range
Technical Specifications
Notes
| General | Cable binders can be used up to a width of 4 mm and from a length of 40 mm |
Product properties
| Number of cables | 100 for 1.5 mm² |
Dimensions
| Width | 68 mm |
| Height | 218 mm |
| Depth | 140.5 mm |
| Cable Length | 700 mm ... 460 mm |
| Drill hole distance, horizontal | 25 mm |
| Drill hole distance, vertical | 25 mm |
| Diameter | 42 mm |
| Hole diameter | 5.5 mm |
Material specifications
| Color | gray |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Static insulating material application in cold | -40 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Components | halogen-free |
Needle-flame test
| Time of exposure | 30 s |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Accessories
CGS-AH 50 SET - Cover, packed in pairs, depth: 54.5 mm, width: 63 mm, height: 214 mm, color: gray
