3071410
Official DistributorSKU
PHX3071410
MPN
CGS-AH 50 SET
Weight
0.222 kg

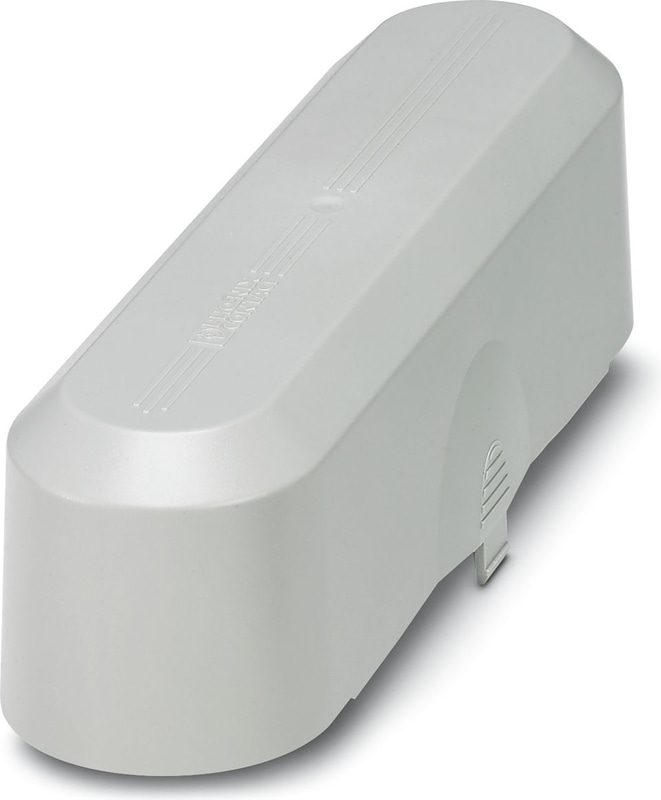

CGS-AH 50 SET - Cover
Cover, packed in pairs, depth: 54.5 mm, width: 63 mm, height: 214 mm, color: gray
- Route preassembled cables and wires easily, thanks to the patent-pending swivel joint
- Subsequent wiring is easy, thanks to swivel joint openings that can be operated without tools
- Integrated flanges with strain relief make assembly quick and easy
- Easily plan cable harnesses: the cable length is predefined through the swivel arm
- Mechanical cable protection and bundling, thanks to protective covers that can be attached without tools
Technical Specifications
Dimensions
| Width | 63 mm |
| Height | 214 mm |
| Depth | 54.5 mm |
Material specifications
| Color | gray |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Components | halogen-free |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Why Proax for Phoenix Contact 3071410?
Proax is an authorized distributor of Phoenix Contact 3071410 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
