Official Distributor
SKU
MPN
3240753
Weight
0.001 kg
This product is Not Cancellable/Not Returnable
Series WT-HF

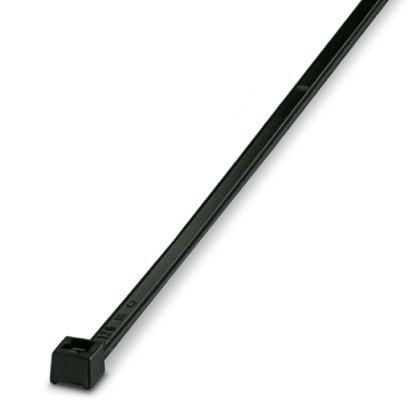

Cable tie - WT-HF 3,6X290 BK
Cable binders for quick and secure bundling, standard version
Technical Specifications
Dimensions
Length (b) | 290 mm |
Width (a) | 3.6 mm |
Cable Diameter | 3 mm ... 80 mm |
Ambient conditions
Ambient Temperature (Operation) | -40 °C ... 85 °C |
Ambient temperature (assembly) | -10 °C ... 60 °C |
Optimum ambient temperature (storage/transport) | 23 °C 50 % Polyamide 6.6 has pronounced hygroscopic properties. It absorbs or releases water in accordance with the level of humidity within its environment. Its properties are ideal when the percentage of water is 2 - 3%. The packaging, which is tailored specifically to the product concerned, contains the optimum level of moisture.To ensure that the ideal properties are maintained, the following points should be observed during storage: Keep product stored inside sealed original packaging, carry out any product processing soon after breaking open the packaging, avoid direct sunlight, avoid direct heat. |
Short-term temperature | 110 °C |
Resistance to UV radiation | no |
General
Color | black |
Components | free from silicone and halogen |
Material | PA 6.6 |
Flammability rating according to UL 94 | V2 |
Tensile strength | 130 N |
Standards and Regulations
Resistance to UV radiation | no |
Environmental Product Compliance
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
China RoHS | No hazardous substances above threshold values |
Accessories
Why Proax for Phoenix Contact WT-HF 3,6X290 BK?
Proax is an authorized distributor of Phoenix Contact WT-HF 3,6X290 BK and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Alternate Names | WTHF36X290BK |
Pack Size | 100 |
