2TLA019995R0400
Weight
0.317 kg

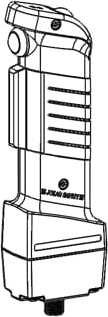

The JSHD4-2-AD is an ergonomic three-position device which top part has LEDs, a front button and a top button, and which bottom part is equipped with a M12-8 connector.
Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Documents
Technical Specifications
Dimensions
| Product Net Depth / Length | 60 mm |
| Product Net Height | 200 mm |
| Product Net Width | 34 mm |
| Product Net Weight | 0.311 kg |
Safety Information
| Performance level (PL) | Up to e |
| B10d Value | Operations to Bottom Position 968 000 |
| B10d Value | Operations to Middle Position 2 million |
Technical
| Communication interface | Contacts |
| Connection configuration | M12-8 male |
| Maximum Switching Current | Main Circuit 0.02 mA |
| Maximum Switching Voltage | Main Circuit 30 V |
| Minimum switching capacity | Main Circuit 8 mA, 10 VDC |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Rated Operational Current DC-12 (Ie) | (24 V) 0.02 A |
| Rated Operational Voltage | 24 V DC |
| Technical Information | Operating force: Approx. 15 N for three-position button (ON), Approx. 45 N for three-position button (OFF), Approx. 2.5 N for top/front pushbutton; Mechanical service life: 1 million cycles, top to middle position, 100 000 cycles, middle to bottom position, and top/front push button |
Technical UL/CSA
| Enclosure Type UL/CSA | 1 |
Why Proax for ABB JSHD4-2-AD?
Proax is an authorized distributor of ABB JSHD4-2-AD and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | JSHD42AD |
| Pack Size | 1 |
