2202906
Official DistributorSKU
PHX2202906
MPN
RPI-BC A+-ADAPTER ATGY
Weight
0.005 kg

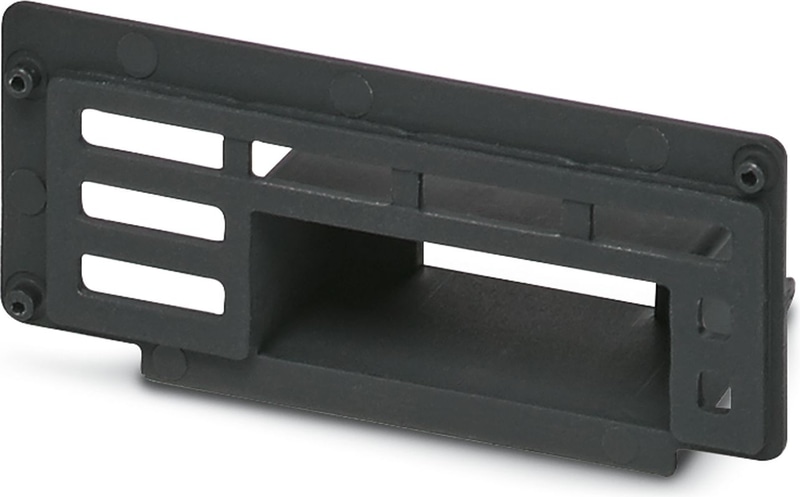

RPI-BC A+-ADAPTER ATGY - Adapter
Optional adapter for RPI-BC housing for using the Raspberry Pi A+
- Tool-free mounting
- Plenty of space for additional circuits on matrix or additional boards
- GPIO strip can be used with PTSM series connection technology
- Easy module-to-module connection, thanks to bus connection via DIN rails
Technical Specifications
Product properties
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Housing series | BC |
| Ventilation openings present | no |
Dimensions
| Width | 57.6 mm |
| Height | 21.9 mm |
| Depth | 17 mm |
Material specifications
| Color (Housing) | anthracite grey (RAL 7016) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Why Proax for Phoenix Contact 2202906?
Proax is an authorized distributor of Phoenix Contact 2202906 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
