2202874
Official DistributorSKU
PHX2202874
MPN
RPI-BC 107,6 DEV-KIT KMGY
Weight
0.119 kg
This product is Not Cancellable/Not Returnable
Series RPI-BC

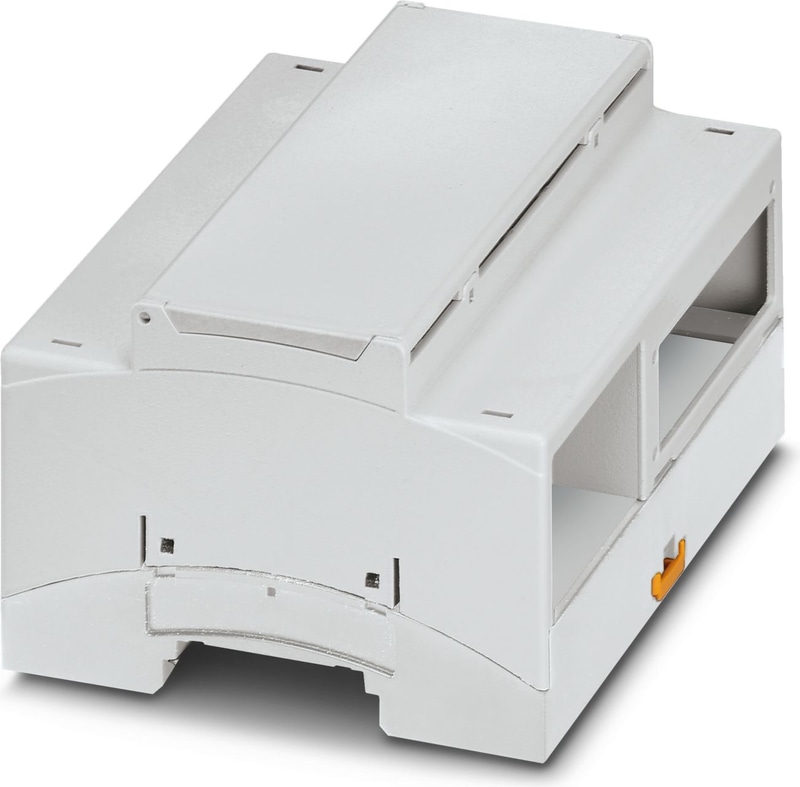

RPI-BC 107,6 DEV-KIT KMGY - Electronics housing
DIN rail housing for Raspberry Pi computers (suitable for Raspberry Pi A+, B+, B2, B3, B4); set consisting of lower part, upper part, cover, and PCB retainer; housing according to DIN 43880
- Tool-free mounting
- Plenty of space for additional circuits on matrix or additional boards
- GPIO strip can be used with PTSM series connection technology
- Easy module-to-module connection, thanks to bus connection via DIN rails
Technical Specifications
Product properties
| Housing type | DIN rail housing for use in distribution boards in accordance with DIN 43880 |
| Housing series | BC |
| Type | Housing set |
| Ventilation openings present | yes |
Dimensions
| Width | 107.6 mm |
| Height | 89.7 mm |
| Depth | 62.2 mm |
Material specifications
| Color (Upper housing part) | light grey (RAL 7035) |
| Color (Lower housing part) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polycarbonate |
Power dissipation single housing for 20 °C
| Ambient Temperature | 20 °C |
| Reduction factor | 1 |
Power dissipation single housing for 30 °C
| Ambient Temperature | 30 °C |
| Reduction factor | 0.84 |
Power dissipation single housing for 40 °C
| Ambient Temperature | 40 °C |
| Reduction factor | 0.72 |
Power dissipation single housing for 50 °C
| Ambient Temperature | 50 °C |
| Reduction factor | 0.6 |
Power dissipation single housing for 60 °C
| Ambient Temperature | 60 °C |
| Reduction factor | 0.48 |
Power dissipation single housing for 70 °C
| Ambient Temperature | 70 °C |
| Reduction factor | 0.38 |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
PCB data
| Type of PCB mount | Latching |
Mounting
| Mounting Type | Snap in |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Why Proax for Phoenix Contact 2202874?
Proax is an authorized distributor of Phoenix Contact 2202874 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
