MPN
PTF 0,3/ 2-WB-10-H
Weight
0.014 kg
Series PTF

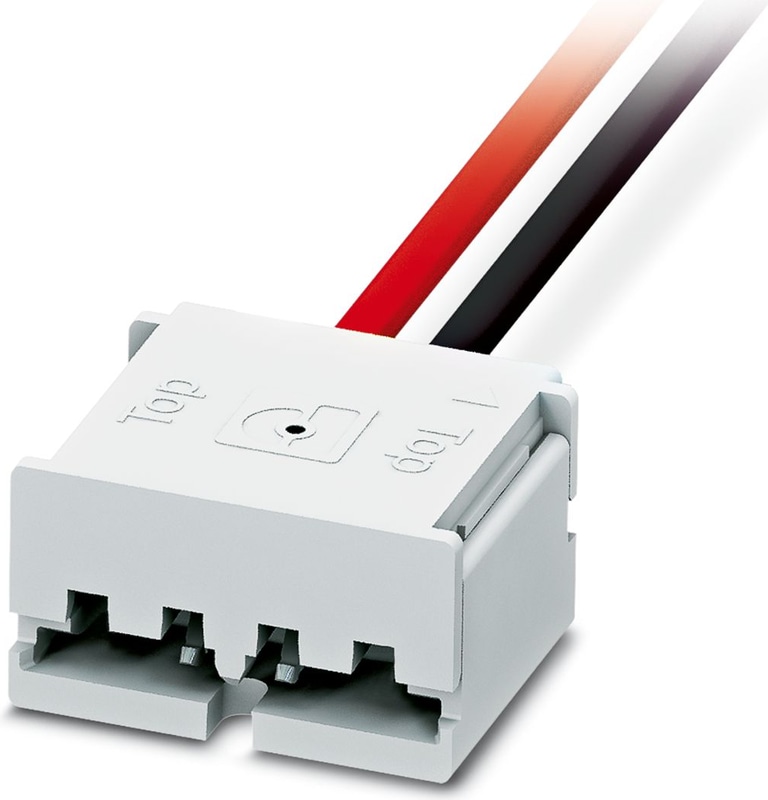

PTF 0,3/ 2-WB-10-H - Cable set
Assembled PCB connector
- Tool-free fast connection for flexible PCBs
- Small component size for applications where space is at a premium
- Reliable contacting of flexible PCBs, thanks to fixing pin
- Designed and tested according to IEC 60838-2-2
- Approval in accordance with UL 1977 demonstrates electrical safety for use in the North American market
Technical Specifications
Product properties
| Product family | PTF 0,3/..-WB-H |
| Product line | COMBICON Connectors Special |
| Number of Positions | 2 |
| Pitch | 2.40 mm |
| Number of Connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
Electrical properties
| Nominal voltage UN | < 25 V |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 25 V |
| Rated voltage (III/2) | 25 V |
Mounting
| Mounting Type | Direct plug-in method |
Notes
| Note regarding documentation | Refer to the installation note in the download area. |
Dimensions
| Pitch | 2.40 mm |
| Length [l] | 9.00 mm |
Tensile strength of crimp connections
| Result | Test passed |
Temperature-rise test
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Insulation resistance
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Insulation resistance, neighboring positions | > 1 MΩ |
Air clearances and creepage distances |
| Specification | IEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03 |
| Insulating material group | IIIa |
| Rated insulation voltage (III/3) | 25 V |
| Rated insulation voltage (III/2) | 25 V |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 500 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2 h |
Glow-wire test
| Specification | IEC 60695-2-11:2000-10 |
| Temperature | 650 °C |
| Time of exposure | 30 s |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Connection 1
| Insulating material | PBT |
| CTI according to IEC 60112 | 275 |
