Official DistributorSKU
MPN
HC-A03-I-UT-M
Series HC-A

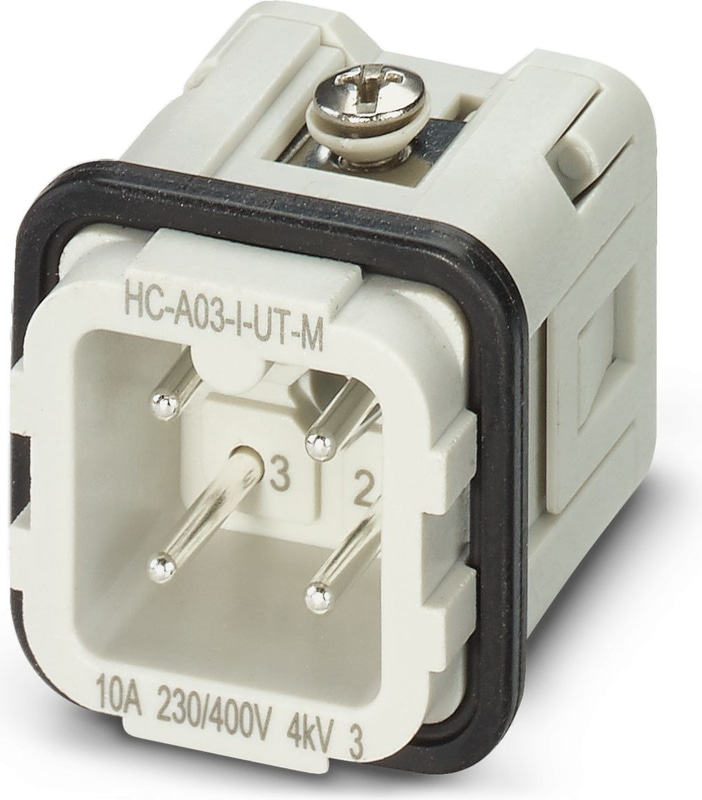

HC-A03-I-UT-M - Contact insert
Contact insert, number of positions: 3+PE, size: D7, number of connections per position: 1, Pin, Screw connection, 230 V/400 V, 10 A, 0.5 mm2 ... 2.5 mm2
Technical Specifications
Notes
| General | for housing HC-D7 |
| General | Connectors may be operated only when there is no load/voltage. |
Mounting
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Assembly instructions | Already includes one IP65 sealing screw |
Product properties
| Series | HC-A |
| Type | D7 |
| Number of Positions | 3 |
| Connection profile | 3+PE |
| Contact numbering | 1 - 3 |
| Number of connections per position | 1 |
| Contact material type | turned |
| Screwdriver blade | 0.4 x 2.5 mm |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 21 mm |
| Height | 28.5 mm |
| Length | 21 mm |
Mechanical characteristics
| Contact diameter | 1.6 mm |
Connection technology
| Connection technology | Screw connection |
| Number of connections per position | 1 |
| Connection in acc. with standard | IEC / EN |
Conductor connection
| Conductor Cross Section | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Tightening torque | 0.25 Nm ... 0.5 Nm |
| Stripping length of the individual wire | 5 mm |
Electrical properties
| Rated voltage (III/2) contacts | 415 V (Conductor-PE) |
| Rated voltage (III/2) contacts | 690 V (Conductor-Conductor) |
| Rated voltage (III/3) | 230 V (Conductor-PE) |
| Rated voltage (III/3) | 400 V (Conductor-Conductor) |
| Rated voltage for power contacts | 230/400 V |
| Rated surge voltage | 4 kV |
| Rated surge voltage | 4 kV |
| Rated current | 10 A |
| SCCR | 5 kA (UL 2237) |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material Profile gasket | NBR, conductive |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C (including heating up of contacts) |
Testing
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Accessories
HC-D 7-DS-IP65 - Sealing screw, size: Countersunk head, IP67, replacement part for D7 size HEAVYCON housing
Why Proax for Phoenix Contact 1585210?
Proax is an authorized distributor of Phoenix Contact 1585210 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
