1585249
Official DistributorSKU
PHX1585249
MPN
HC-A04-I-UT-F
Weight
0.017 kg
Series HC-A

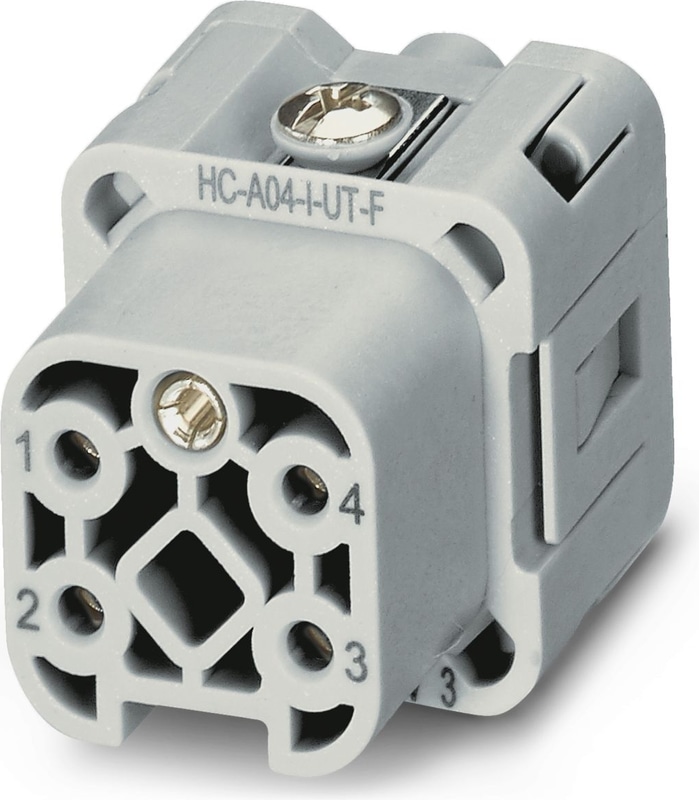

HC-A04-I-UT-F - Contact insert
Contact insert, number of positions: 4+PE, size: D7, number of connections per position: 1, Socket, Screw connection, 230 V/400 V, 10 A, 0.5 mm2 ... 2.5 mm2
- Shock and vibration-resistant in accordance with DIN EN 61373
Documents
Technical Specifications
Notes
| General | for housing HC-D7 |
| General | Connectors may be operated only when there is no load/voltage. |
Mounting
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Assembly note | Already includes one IP65 sealing screw |
Product properties
| Series | HC-A |
| Type | D7 |
| Number of Positions | 4 |
| Connection profile | 4+PE |
| Contact numbering | 1 - 4 |
| Number of connections per position | 1 |
| Contact material type | turned |
| Screwdriver blade | 0.4 x 2.5 mm |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 28 mm |
| Height | 28.5 mm |
| Length | 21 mm |
Mechanical characteristics
| Contact diameter | 1.6 mm |
Connection technology
| Connection technology | Screw connection |
| Number of connections per position | 1 |
| Connection in acc. with standard | IEC / EN |
Conductor connection
| Conductor Cross Section | 0.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 20 ... 14 |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Tightening torque | 0.25 Nm ... 0.5 Nm |
| Stripping length of the individual wire | 5 mm |
Electrical properties
| Rated voltage (III/3) | 230 V (Conductor-PE) |
| Rated voltage (III/3) | 400 V (Conductor-Conductor) |
| Rated voltage for power contacts | 230/400 V |
| Rated surge voltage | 4 kV |
| Rated surge voltage | 4 kV |
| Rated current | 10 A |
| SCCR | 5 kA (UL 2237) |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C (including heating up of contacts) |
Standards and Regulations
| Constructional and testing regulations | IEC 61984:2008 |
| Constructional and testing regulations | IEC 60664-1:2007 |
| Constructional and testing regulations | IEC 60664-1, DIN IEC 60512 |
| Tests | IEC 61984:2008 |
| Tests | IEC 60664-1:2007 |
| Tests | IEC 60664-1, DIN IEC 60512 |
Testing
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Accessories
HC-D 7-DS-IP65 - Sealing screw, size: Countersunk head, IP67, replacement part for D7 size HEAVYCON housing
