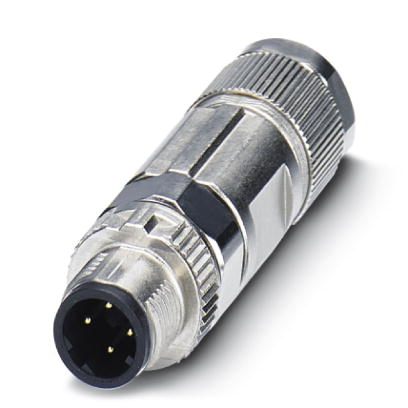

Connector SACC-MSD-4PCT-SH PN SCO
Connector, PROFINET CAT5 (100 Mbps), 4-position, halogen-free, shielded, Plug straight M12 SPEEDCON, D-coded, Crimp connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5.5 mm ... 10 mm, with crimp contacts
- Safe use in the field, thanks to a high degree of protection
- Flexible: connectors for on-site assembly
- Save time, thanks to installation with SPEEDCON fast locking system
- Reliable signal transmission - 360° shielding in environments with electromagnetic interference
Technical Specifications
Dimensions
| Wrench size, union nut | 15 mm |
| Diameter housing | 16 mm |
| Length | 51 mm |
| External Cable Diameter | 5.5 mm ... 10 mm |
| Stripping length of the sheath | 26 mm |
| Stripping length of the individual wire | 4 mm +0,5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
General
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V DC |
| Rated voltage | 48 V AC |
| Number of Positions | 4 |
| Insulation resistance | ≥ 100 Ω |
| Coding | D - data |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Standards/regulations | Shock, vibration EN 50155:2001 |
| Signal type/category | PROFINET CAT5 (on the basis of IEC 11801), 100 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection Method | Crimp connection |
| Conductor Cross Section | 0.34 mm² ... 1 mm² (flexible) |
| Conductor cross section AWG | 22 ... 18 (flexible) |
| Wire diameter incl. insulation | ≤ 2.3 mm |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 knurl) |
| Torque | ≤ 5 Nm (Screw plug insert with sleeve housing as far it will go) |
| Torque | 5 Nm (Pressure nut with coupling sleeve) |
| Assembly instructions | This connector includes one seal for small and one seal for large outer cable diameters. |
Material
| Flammability rating according to UL 94 | V0 |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | FKM |
| Additional material specifications | Zinc die-cast (Housing) |
| Additional material specifications | nickel-plated (Housing surface) |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Standards and Regulations
| Standard designation | M12 connector |
| Standards/regulations | IEC 61076-2-101 |
| Standard designation | Shock, vibration |
| Standards/regulations | EN 50155:2001 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
1212510 - Crimping pliers, for turned contacts, universal cross section setting, up to a maximum of 2.5 mm2, digital display with 0.01 mm increments, pressure lock can be unlocked, including positioning tool
1417184 - Shielding foil set, 25 pieces, replacement for RJ45 and M12 Quickon connector
1208429 - Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors
1208432 - Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter of 15 mm, for 4 mm hexagonal drive
1212224 - Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm
1212600 - Adapter bit for TSD-M...torque tools, E6.3-1/4" drive with 4 mm hexagon to accommodate SAC bits
1430873 - M12 sealing cap made of plastic with fixing band, for sensor cables, for free M12 plugs
1212161 - Stripping tool, for stripping cables of 4.5 mm ‑ 40 mm‑Ø, insulation thickness of up to 4.5 mm, pivoting blade for round, lengthwise, and spiral cuts
1212489 - Electronic diagonal cutter, round head, without chamfer, with opening spring, mirror-polished and oiled, 2-component grip, cutting capacity: soft 0.2 - 2.0 mm; medium hard 1.2 mm; hard 0.5 mm diameter
1212368 - Stripping tool, for conductors and cables with a conductor cross section from 0.08 to 2.5 mm, self-adjusting, stripping length adjustable up to 15 mm, cutting capacity up to 6 mm2 stranded/1.5 mm2 solid
