OT200U22
Official DistributorBy ABB
SKU
ABBOT200U22
MPN
1SCA022741R8960
Weight
1.9 kg

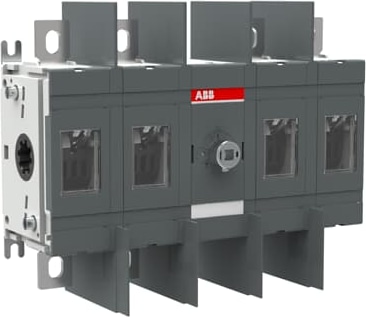

4-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
Dimensions
| Product Net Width | 217.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.9 kg |
Technical
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 132 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 200 kW |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 22.6 N·m |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 60 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 208 V) 60 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 75 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 150 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 200 Hp |
| Tightening torque | acc. IEC 60947-1 22.6 N·m |
| Tightening Torque UL/CSA | 275 in·lb |
Why Proax for ABB OT200U22?
Proax is an authorized distributor of ABB OT200U22 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
