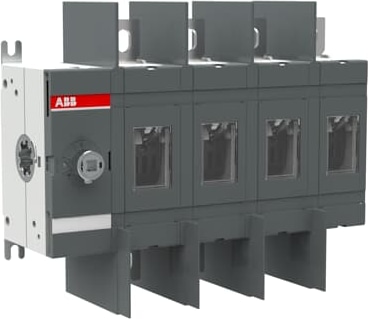

4-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
Technical Specifications
Dimensions
| Product Net Width | 212.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.9 kg |
Technical
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 132 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 200 kW |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Pollution degree | 3 |
| Handle Type | Handle and shaft included |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 04 (Left Side) |
| Distance Between Phases | Standard |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Operating mode | Front operated |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Special Functions | No |
| Mounting Type | Base mounting |
| Number of Poles | 4 |
| Degree of Protection | Front IP00 |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 22.6 N·m |
| Mechanical Durability | 20000 |
| Lock type | No |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 60 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 208 V) 60 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 75 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 150 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 200 Hp |
| Tightening torque | acc. IEC 60947-1 22.6 N·m |
| Tightening Torque UL/CSA | 275 in·lb |
