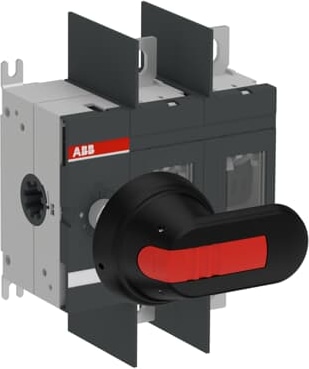

OT200U02P
Official DistributorBy ABB
SKU
ABBOT200U02P
MPN
1SCA022749R3740
Weight
1.3 kg
Including handle: NEMA 1, 3R, 12, IP65 and shaft
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
Dimensions
| Product Net Width | 126.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.3 kg |
Technical
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating mode | Front |
| Pollution degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 250 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 02 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 22.6 N·m |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Tightening torque | acc. IEC 60947-1 22.6 N·m |
