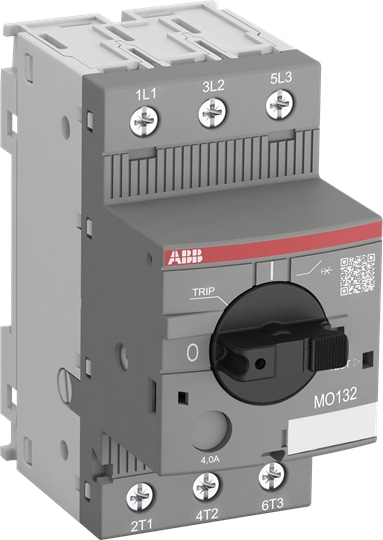

The MO132-10 manual motor starter magnetic only is a compact 45 mm width device with a rated operational current of Ie = 10.0 A. This device is used to manually switch on and off loads/motors and to protect them reliably and without the need for a fuse from short-circuits. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100 kA at 400 V AC. A combination together with overload relays or motor controllers allows the protection of motors. Further features are the built-in disconnect function, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter magnetic only is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks are available as accessory.
Technical Specifications
Dimensions
| Product Net Width | 45 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 86.75 mm |
| Product Net Weight | 0.265 kg |
Technical
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 20 kA, (500 V AC) 20 kA, (690 V AC) 3 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA, (400 V AC) 100 kA, (440 V AC) 20 kA, (500 V AC) 20 kA, (690 V AC) 3 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 125 A |
| Setting range | None |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 4 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 4 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Current (Ie) | 10 A |
| Rated Operational Current AC-3 (Ie) | 10 A |
| Rated Operational Current AC-3e (Ie) | 10 A |
| Rated Frequency (f) | Main Circuit 50 Hz, Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions per Pole 2.2 W |
| Number of Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 10 A |
| Degree of Protection | Housing IP20, Main Circuit Terminals IP10 |
| Pollution degree | 3 |
| Electrical Durability | 50000 cycle |
| Mechanical Durability | 100000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm², Flexible 1/2x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 4 mm² |
| Tightening torque | Main Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Main Circuit 9 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mm, Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm, Electrical Conductive Board, Vertical 75 mm, Other Device Same Type, Horizontal 0 mm, Other Device Same Type, Vertical 150 mm |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| Remarks | For overload protection of the motors, an appropriate thermal or electronic overload relays must be used |
Technical UL/CSA
| Short-circuit current rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA, Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 35 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA, Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 18 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA, Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 18 kA |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 2 Hp, (208 V AC) Three Phase 2 Hp, (220 ... 240 V AC) Three Phase 3 Hp, (440 ... 480 V AC) Three Phase 5 Hp, (550 ... 600 V AC) Three Phase 7.5 Hp |
| Full Load Amps Motor Use | (200 V AC) Three Phase 7.8 A, (208 V AC) Three Phase 7.5 A, (220 ... 240 V AC) Three Phase 9.6 A, (440 ... 480 V AC) Three Phase 7.6 A, (550 ... 600 V AC) Three Phase 9 A |
| Locked Rotor Amps | (200 V AC) Three Phase 57.5 A, (208 V AC) Three Phase 55 A, (220 ... 240 V AC) Three Phase 64 A, (440 ... 480 V AC) Three Phase 46 A, (550 ... 600 V AC) Three Phase 50.8 A |
| General Use Rating UL/CSA | (600 V AC) 10 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-12 AWG, Stranded 1/2x 16-12 AWG |
| Tightening Torque UL/CSA | Main Circuit 10 in·lb |
Environmental
| Ambient Air Temperature | Around the Enclosure 0 ... +40 °C, Operation -25 ... +60 °C, Storage -50 ... +80 °C |
| Ambient Air Temperature Compensation | No |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g / 3 ... 150 Hz |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
