Official DistributorBy ABB
SKU
MPN
1SFL487002R3311
Weight
3.519 kg

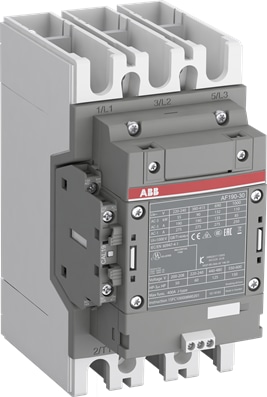

The AF190-30-11-33 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 90 kW / 400 V AC (AC-3) or 125 hp / 480 V UL and switching power circuits up to 275 A (AC-1) or 250 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specifications
Dimensions
| Product Net Width | 105 mm |
| Product Net Depth / Length | 169.5 mm |
| Product Net Height | 196 mm |
| Product Net Weight | 2.4 kg |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 275 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 250 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 55 °C 225 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 60 °C 225 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 70 °C 185 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 275 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 55 °C 250 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 60 °C 250 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 70 °C 200 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 190 A |
| Rated Operational Current AC-3 (Ie) | (440 V) 55 °C 190 A |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 156 A |
| Rated Operational Current AC-3 (Ie) | (690 V) 55 °C 135 A |
| Rated Operational Current AC-3 (Ie) | (1000 V) 55 °C 85 A |
| Rated Operational Current AC-3 (Ie) | (380 / 400 V) 55 °C 190 A |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 190 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 190 A |
| Rated Operational Current AC-3e (Ie) | (440 V) 60 °C 190 A |
| Rated Operational Current AC-3e (Ie) | (500 V) 60 °C 135 A |
| Rated Operational Current AC-3e (Ie) | (690 V) 60 °C 135 A |
| Rated Operational Current AC-3e (Ie) | (1000 V) 60 °C 85 A |
| Rated Operational Current AC-3e (Ie) | (380 / 400 V) 60 °C 190 A |
| Rated Operational Current AC-3e (Ie) | (220 / 230 / 240 V) 60 °C 190 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 90 kW |
| Rated Operational Power AC-3 (Pe) | (440 V) 110 kW |
| Rated Operational Power AC-3 (Pe) | (500 V) 110 kW |
| Rated Operational Power AC-3 (Pe) | (690 V) 132 kW |
| Rated Operational Power AC-3 (Pe) | (1000 V) 110 kW |
| Rated Operational Power AC-3 (Pe) | (380 / 400 V) 90 kW |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (415 V) 90 kW |
| Rated Operational Power AC-3e (Pe) | (440 V) 110 kW |
| Rated Operational Power AC-3e (Pe) | (500 V) 110 kW |
| Rated Operational Power AC-3e (Pe) | (690 V) 132 kW |
| Rated Operational Power AC-3e (Pe) | (1000 V) 110 kW |
| Rated Operational Power AC-3e (Pe) | (380 / 400 V) 90 kW |
| Rated Operational Power AC-3e (Pe) | (220 / 230 / 240 V) 55 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 355 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1520 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 275 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 621 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1900 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 878 A |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-2 / AC-4) 150 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-3) 300 cycles per hour |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | 60 Hz 100 ... 250 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 100 ... 250 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 60 Hz 7 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 220 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 220 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 190 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
| Operate Time | Between Coil Energization and NO Contact Closing 25 ... 55 ms |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| Terminal Type | Main Circuit: Bars |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 1000 V |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 20 Hp |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 50 hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 50 hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 25 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 60 hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 60 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 125 hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 75 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 150 hp |
