AF116-30-11-34
Official DistributorBy ABB
SKU
ABBAF116301134
MPN
1SFL427001R3411
Weight
1.55 kg

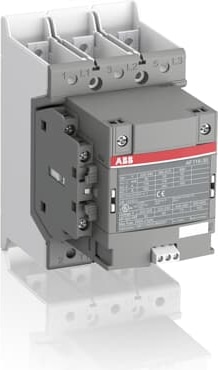

The AF116-30-11-34 is a 3 pole - 690 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and double clamp, controlling motors up to 55 kW / 400 V AC (AC-3) or 75 hp / 480 V UL and switching power circuits up to 160 A (AC-1) or 160 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Technical Specifications
Dimensions
| Product Net Width | 90 mm |
| Product Net Depth / Length | 142.5 mm |
| Product Net Height | 150 mm |
| Product Net Weight | 1.55 kg |
Technical
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit 690 V |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 160 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 160 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 60 °C 145 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 70 °C 130 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 116 A |
| Rated Operational Current AC-3 (Ie) | (440 V) 55 °C 116 A |
| Rated Operational Current AC-3 (Ie) | (500 V) 55 °C 110 A |
| Rated Operational Current AC-3 (Ie) | (690 V) 55 °C 65 A |
| Rated Operational Current AC-3 (Ie) | (380 / 400 V) 55 °C 116 A |
| Rated Operational Current AC-3 (Ie) | (220 / 230 / 240 V) 55 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (440 V) 60 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (500 V) 60 °C 110 A |
| Rated Operational Current AC-3e (Ie) | (690 V) 60 °C 65 A |
| Rated Operational Current AC-3e (Ie) | (380 / 400 V) 60 °C 116 A |
| Rated Operational Current AC-3e (Ie) | (220 / 230 / 240 V) 60 °C 116 A |
| Rated Operational Current DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-1 (Ie) | (220 V) 3 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-3 (Ie) | (220 V) 3 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| Rated Operational Current DC-5 (Ie) | (220 V) 3 Poles in Series, 40 °C 145 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 55 kW |
| Rated Operational Power AC-3 (Pe) | (440 V) 75 kW |
| Rated Operational Power AC-3 (Pe) | (500 V) 75 kW |
| Rated Operational Power AC-3 (Pe) | (690 V) 55 kW |
| Rated Operational Power AC-3 (Pe) | (380 / 400 V) 55 kW |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 30 kW |
| Rated Operational Power AC-3e (Pe) | (415 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (440 V) 75 kW |
| Rated Operational Power AC-3e (Pe) | (500 V) 75 kW |
| Rated Operational Power AC-3e (Pe) | (690 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (380 / 400 V) 55 kW |
| Rated Operational Power AC-3e (Pe) | (220 / 230 / 240 V) 30 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 250 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 160 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 536 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1160 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 928 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 379 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1000 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-2 / AC-4) 150 cycles per hour |
| Maximum Electrical Switching Frequency | (AC-3) 300 cycles per hour |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 250 ... 500 V |
| Rated Control Circuit Voltage (Uc) | 60 Hz 250 ... 500 V |
| Rated Control Circuit Voltage (Uc) | DC Operation 250 ... 500 V |
| Coil Consumption | Average Pull-in Value 50 Hz 260 V·A |
| Coil Consumption | Average Pull-in Value 60 Hz 260 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 16.1 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 60 Hz 16.1 V·A |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage DC 4 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 205 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 205 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 230 V·A |
| Coil Consumption | Pull-in at Max. Rated Control Circuit Voltage DC 230 W |
| Power Loss | at Rated Operating Conditions per Pole 6 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
| Operate Time | Between Coil Energization and NO Contact Closing 25 ... 55 ms |
| Connecting Capacity Main Circuit | Flexible 2 x 10 ... 70 mm² |
| Connecting Capacity Main Circuit | Rigid Cu-Cable 2 x 10 ... 95 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Flexible 2x0.75 ... 2.5 mm² |
| Connecting Capacity Auxiliary Circuit | Solid 2 x 1 ... 4 mm² |
| Connecting Capacity Auxiliary Circuit | Stranded 2 x 1 .... 4 mm² |
| Connecting Capacity | Flexible 2 x 10 ... 70 mm² |
| Connecting Capacity | Rigid Cu-Cable 2 x 10 ... 95 mm² |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 |
| Tightening torque | Cable Lug 9 N·m |
| Tightening torque | Main Circuit 8 N·m |
| Terminal Type | Double Clamp |
| Product Name | Block Contactor |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (600 V AC) 160 A |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 15 Hp |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 30 hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 30 hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 20 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 40 hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 40 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 75 hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 50 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 100 hp |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 96 A |
| Full Load Amps Motor Use | (550 ... 600 V AC) Three Phase 99 A |
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| End Of Life Disassembling Instructions | 1SFC100112M0001 |
| Environmental Product Declaration - EPD | 1SFC100092D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 87.8 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 37 % |
