Official DistributorBy ABB
SKU
MPN
1SAJ929200R0035
Weight
0.19 kg

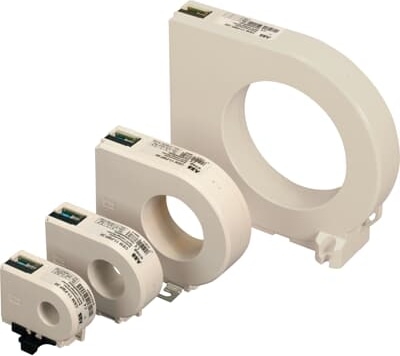

CEM11-FBP.35 Earth Leakage Monitor features a 35 mm diameter through hole. A threshold can be set, upon violation of this threshold a binary signal is outputted.
Technical Specifications
Dimensions
| Product Net Width | 100 mm |
| Product Net Depth / Length | 79 mm |
| Product Net Height | 31 mm |
| Product Net Weight | 200 g |
Technical
| Connecting Capacity | 1x 0.75-1.5 mm² |
| Mounting Position | Any |
| Mounting Type | DIN-Rail with Adapter |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Power Loss | Approximately 0.2 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Recommended Screw Driver | Pozidriv 1 |
| Setting range | 0.1 ... 3.4 A |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Suitable for | UMC100-FBP |
| Suitable for | UMC100.3 |
| Suitable for Product Class | Universal Motor Controllers |
| Tightening torque | Auxiliary Circuit 0.6 ... 1 N·m |
| Tightening torque | Control Circuit 0.6 ... 1 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 18-16 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 18-16 AWG |
Why Proax for ABB CEM11-FBP.35?
Proax is an authorized distributor of ABB CEM11-FBP.35 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CEM11FBP35 |
| Pack Size | 1 |
