SKU
MPN
1SAJ929160R0001
Weight
1 kg

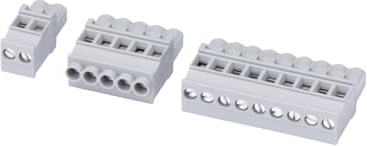

Set of all terminal blocks for the UMC100.3 DC versions, including terminal blocks for DI, DO, PTC, Data connection.
Technical Specifications
Dimensions
| Product Net Width | 13 mm |
| Product Net Depth / Length | 170 mm |
| Product Net Height | 10 mm |
| Product Net Weight | 0.042 kg |
Technical
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Mounting Type | DIN-Rail with Adapter |
| Mounting on DIN Rail | No |
| Recommended Screw Driver | Pozidriv 1 |
| Suitable for | UMC100-FBP |
| Suitable for | UMC100.3 |
| Suitable for Product Class | Universal Motor Controllers |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.5 N·m |
| Tightening torque | Control Circuit 0.5 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 28-12 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 28-12 AWG |
Why Proax for ABB UMCTB-FBP.0?
Proax is an authorized distributor of ABB UMCTB-FBP.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | UMCTBFBP0 |
| Pack Size | 1 |
