2702258
Official DistributorSKU
PHX2702258
MPN
TC EXTENDER PT-IQ-2S
Weight
0.106 kg
Series TC-EXTENDER-PT-IQ

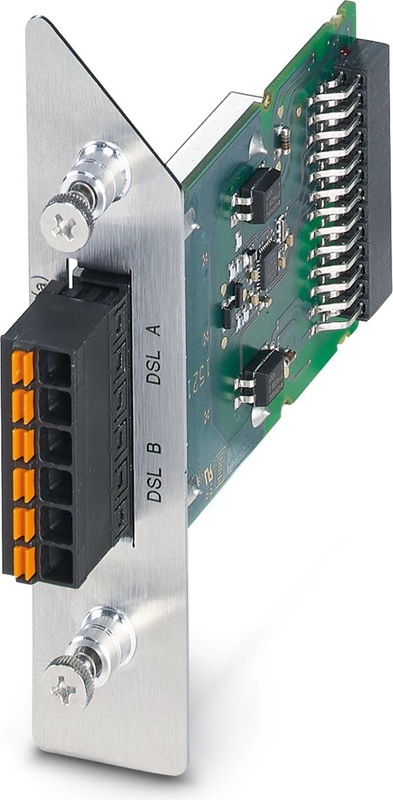

TC EXTENDER PT-IQ-2S - Surge protection plug
Replaceable surge protection module, only for Ethernet extender TC EXTENDER 6004 ETH-2S (2702255), 2 SHDSL ports, two-wire protection for floating SHDSL cables, two-level protective circuit
Technical Specifications
Product properties
| IEC test classification | B1 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | Male |
| Wire pairs per module | 2 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 22 mm |
| Height | 96 mm |
| Depth | 80 mm |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Nominal discharge current In (8/20) µs (line-line) | 1 kA (C1, 300 pulses) |
| Nominal discharge current In (8/20) µs (line-ground) | 1 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 500 A (D1) |
| Total discharge current Itotal (8/20) µs | 9 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A (B1) |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
Ambient conditions
| Degree of Protection | IP20 |
Conformity/Approvals
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Standards/specifications | IEC 60664-1 |
Mounting
| Mounting Type | Pluggable (slot) |
