Official DistributorBy ABB
SKU
MPN
1SFN034403R1000

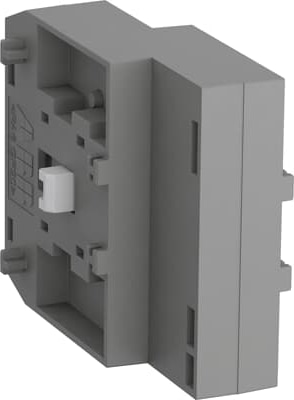

Mechanical interlock for use with contactors AF116…AF205. For interlocking contactors AF116…AF146 with AF190…AF205
Technical Specifications
Dimensions
| Product Net Width | 30 mm |
| Product Net Depth / Length | 41.8 mm |
| Product Net Height | 84.9 mm |
| Product Net Weight | 0.09 kg |
Technical
| Terminal Type | Screw Terminals |
| Suitable for | AF116 |
| Suitable for | AF140 |
| Suitable for | AF146 |
| Suitable for | AF190 |
| Suitable for | AF205 |
| Suitable for | AF116B |
| Suitable for | AF140B |
| Suitable for | AF146B |
| Suitable for | AF190B |
| Suitable for | AF205B |
Why Proax for ABB VM140/190?
Proax is an authorized distributor of ABB VM140/190 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | VM140190 |
| Pack Size | 1 |
