LF16-4
Official DistributorBy ABB
SKU
ABBLF164
MPN
1SBN071305R1000
Weight
0.02 kg

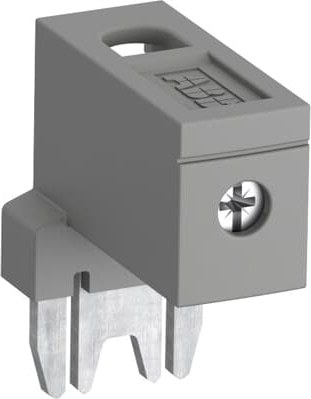

LF16-4 is an insulated connecting strip used on 3 or 4-pole AF(C)(S)09..16 contactors, equipped with a main terminal screw used to connect 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue.
Technical Specifications
Dimensions
| Product Net Width | 21.4 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Height | 39.3 mm |
| Product Net Weight | 0.02 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 16 mm² |
| Connecting Capacity Main Circuit | Flexible with Insulated Ferrule 1x 2.5 ... 16 mm² |
| Connecting Capacity Main Circuit | Rigid 1x 2.5 ... 25 mm² |
| Wire Stripping Length | Main Circuit 14 mm |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Recommended Screw Driver | Main Circuit Flat Ø 5.5 mm |
| Tightening torque | Main Circuit 2.5 N·m |
| Terminal Type | Screw Terminals |
| Suitable for | AF09 |
| Suitable for | AF09Z |
| Suitable for | AF12 |
| Suitable for | AF12Z |
| Suitable for | AF16 |
| Suitable for | AF16Z |
| Suitable for | AFC09 |
| Suitable for | AFC12 |
| Suitable for | AFC16 |
| Product Name | Connecting Strip |
Technical UL/CSA
| Connecting Capacity Main Circuit UL/CSA | 1x 12-4 AWG |
| Tightening Torque UL/CSA | Main Circuit 22 in·lb |
